Multilayer Ceramic Capacitor (MLCC) with 100nF capacitance and 10% tolerance. Features X7R dielectric for stable performance across a -55°C to 125°C operating temperature range. Rated for 1kV DC, this 1812 case code component offers flexible termination for enhanced reliability and low ESR. Surface mountable with a 1.7mm height and 4.5mm length.
Package1812
Voltage1kV
Capacitance100nF
Voltage Rating1kV
Quick Jump:
Technical Specifications
Kemet C1812W104KDRACTU technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Depth | 3.2mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Features | Soft Termination |
| Height | 1.7mm |
| Length | 4.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ArcShield™ |
| Termination | SMD/SMT |
| Thickness | 0.073inch |
| Tolerance | 10% |
| Voltage | 1kV |
| Voltage Rating | 1kV |
| DC Rated Voltage | 1kV |
| Width | 0.126inch |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C1812W104KDRACTU Datasheet
Download the complete datasheet for Kemet C1812W104KDRACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

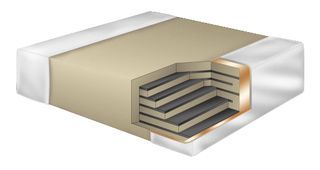

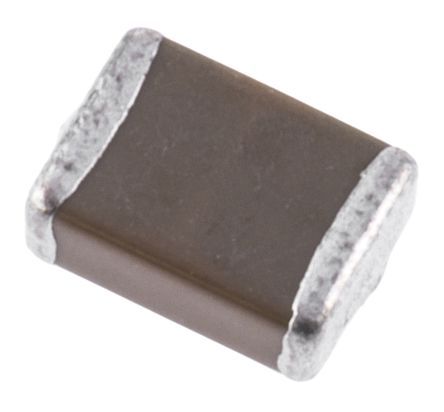

Product Images
