Surface mount ceramic capacitor featuring 1µF capacitance and 250V DC rating. This general-purpose component utilizes an X7R dielectric with ±10% tolerance, operating across a -55°C to +125°C temperature range. The 2225 (5664 metric) case size offers a flat construction with dimensions of 5.6mm length, 6.4mm width, and 1.4mm height. It is RoHS compliant and supplied on a 7" reel.
Package2225
Voltage250V
Capacitance1uF
Voltage Rating250V
Quick Jump:
Technical Specifications
Kemet C2225C105KARACTU technical specifications.
General
| Capacitance | 1uF |
| Case Code (Imperial) | 2225 |
| Case Code (Metric) | 5664 |
| Package/Case | 2225 |
| Construction | Flat |
| Depth | 6.4mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Dissipation Factor | 2.5% |
| Height | 1.4mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.3mm |
| Length | 5.6mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SMD Comm X7R Tip-Ring |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 250V |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Width | 6.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C2225C105KARACTU Datasheet
Download the complete datasheet for Kemet C2225C105KARACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

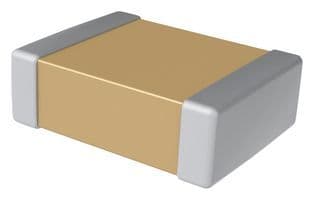

Product Images
