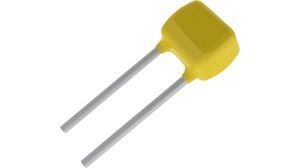

Multilayer ceramic capacitor with 47pF capacitance and 200V DC rated voltage. Features C0G dielectric for stable performance across a -55°C to 125°C operating temperature range, with a 30ppm/°C temperature coefficient. Through-hole mounting with radial leads on a 2.54mm pitch, offering a 5% tolerance and 0.1% dissipation factor. Lead-free and RoHS compliant construction.
PackageRadial
Voltage200V
Capacitance47pF
Voltage Rating200V
Quick Jump:
Technical Specifications
Kemet C315C470J2G5TA technical specifications.
General
| Capacitance | 47pF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 2.54mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Dissipation Factor | 0.1% |
| Height | 2.54mm |
| Lead Diameter | 0.51mm |
| Lead Free | Lead Free |
| Lead Length | 7mm |
| Lead Pitch | 2.54mm |
| Lead/Base Style | Straight |
| Length | 3.81mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 500 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | GoldMax 300 Comm C0G |
| Termination | Radial |
| Tolerance | 5% |
| Voltage | 200V |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
| Width | 3.81mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C315C470J2G5TA Datasheet
Download the complete datasheet for Kemet C315C470J2G5TA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
