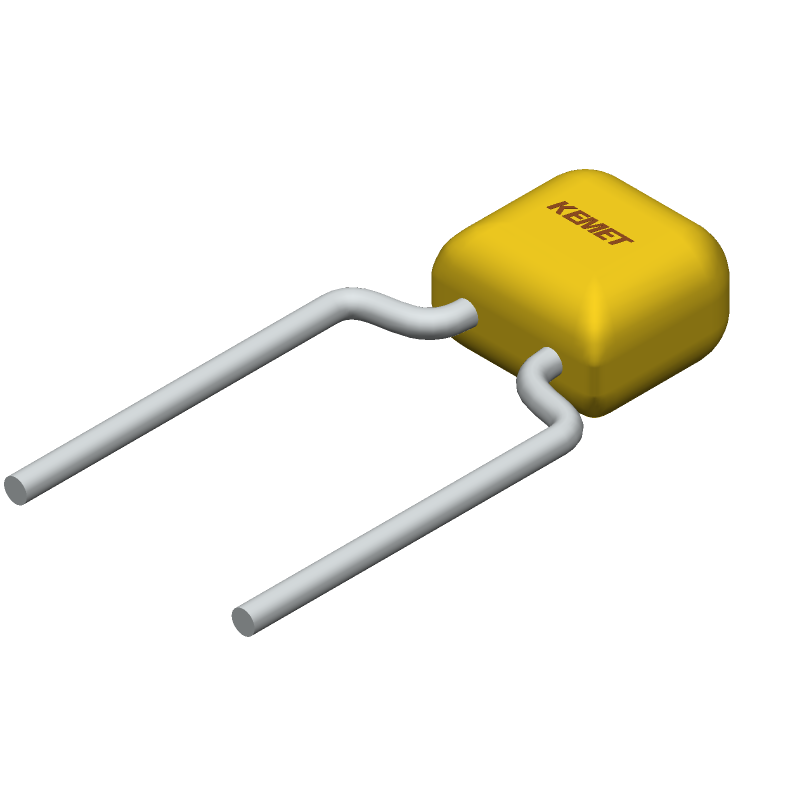

Radial multilayer ceramic capacitor with 220pF capacitance and 200V DC rating. Features C0G dielectric for excellent stability and a 5% tolerance. Designed for through-hole PCB mounting with a 5.08mm lead pitch and 7mm lead length. Operates from -55°C to 125°C with a low dissipation factor of 0.1%.
PackageRadial
Voltage200V
Capacitance220pF
Voltage Rating200V
Quick Jump:
Technical Specifications
Kemet C317C221J2G5TA technical specifications.
General
Capacitance
220pF
Package/Case
Radial
Construction
RADIAL
Depth
2.54mm
Dielectric
C0G
Dielectric Material
Ceramic
Dissipation Factor
0.1%
Height
2.54mm
Lead Diameter
0.51mm
Lead Free
Lead Free
Lead Length
7mm
Lead Pitch
5.08mm
Lead/Base Style
Formed Leads
Length
3.81mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GoldMax 300 Comm C0G
Termination
Radial
Tolerance
5%
Voltage
200V
Voltage Rating
200V
DC Rated Voltage
200V
Width
3.81mm
Compliance
RoHS
Compliant
Datasheet
Kemet C317C221J2G5TA Datasheet
Download the complete datasheet for Kemet C317C221J2G5TA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
