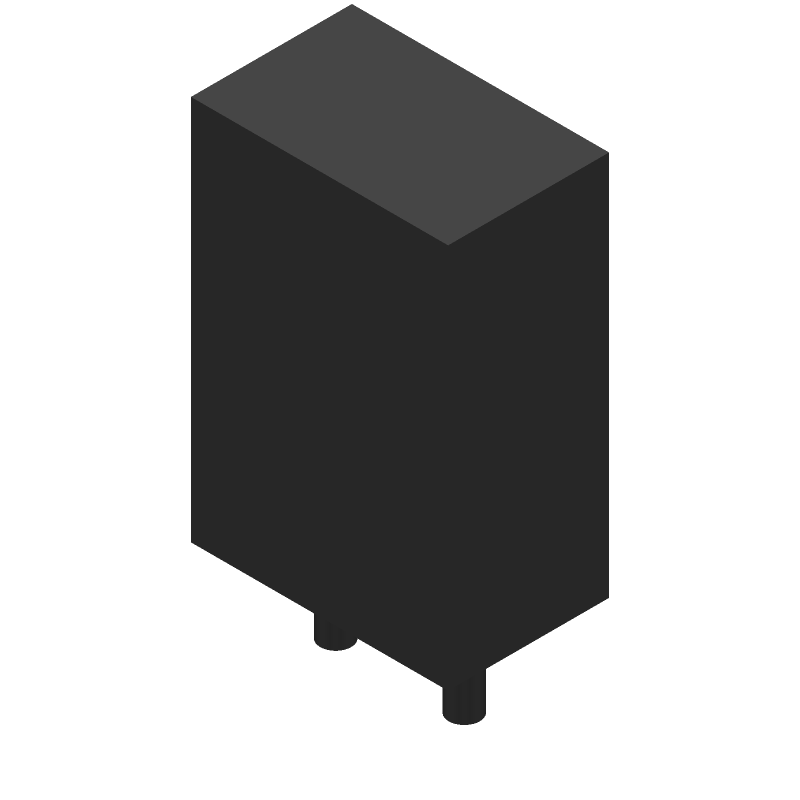

Kemet
C326C104K5R5TA
Ceramic Capacitor, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Through Hole Mount, 2012, RADIAL LEADED
PackageRadial
Capacitance100nF
Voltage Rating50V
MountingThrough Hole
Quick Jump:
Technical Specifications
Kemet C326C104K5R5TA technical specifications.
General
| Capacitance | 100nF |
| Package/Case | Radial |
| Dielectric | X7R |
| Dissipation Factor | 2.5% |
| Height | 8.89mm |
| Lead Diameter | 0.51mm |
| Lead Pitch | 2.54mm |
| Lead/Base Style | Kinked |
| Length | 5.08mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GoldMax 300 Comm X7R |
| Termination | Radial |
| Tolerance | 10% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 2.54mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C326C104K5R5TA Datasheet
Download the complete datasheet for Kemet C326C104K5R5TA to view detailed technical specifications.
No datasheet is available for this part.
