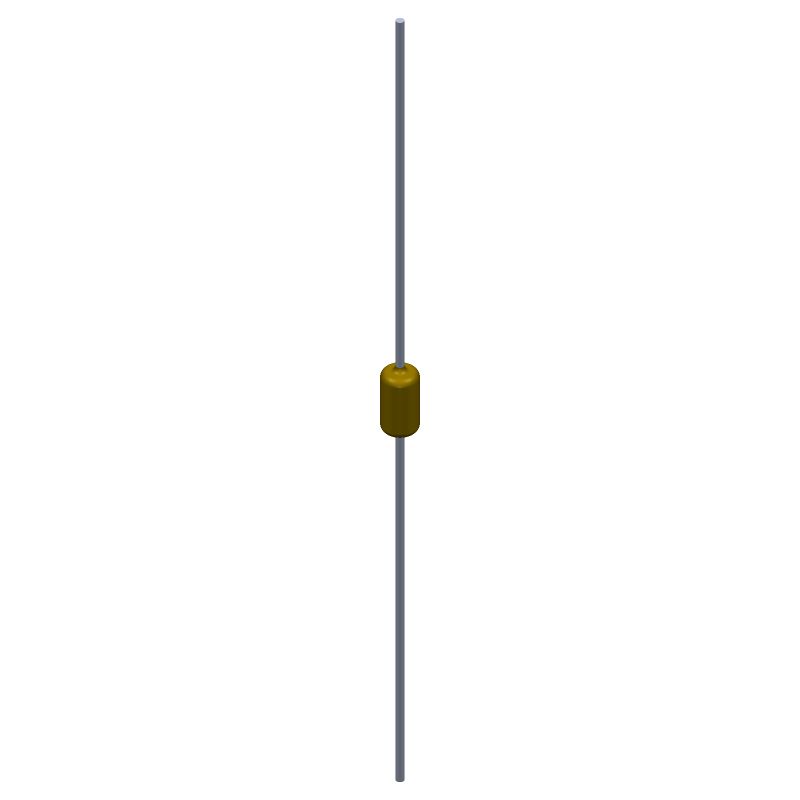

This multilayer ceramic capacitor from Kemet features a capacitance of 390pF and a voltage rating of 100V. It has a tolerance of 5% and is designed for through-hole mounting. The capacitor is packaged in a 410 case with a diameter of 2.54mm and a length of 4.32mm. It operates over a temperature range of -55°C to 125°C and is RoHS compliant.
Package410
Voltage100V
Capacitance390pF
Voltage Rating100V
Quick Jump:
Technical Specifications
Kemet C410C391J1G5TA technical specifications.
General
| Capacitance | 390pF |
| Package/Case | 410 |
| Diameter | 2.54mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Dissipation Factor | 0.1% |
| Lead Diameter | 0.51mm |
| Length | 4.32mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 300 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | C410 |
| Termination | Axial |
| Tolerance | 5% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C410C391J1G5TA Datasheet
Download the complete datasheet for Kemet C410C391J1G5TA to view detailed technical specifications.
No datasheet is available for this part.
