This 330nF PP film capacitor features a 5% tolerance and a maximum operating temperature of 85°C. It is designed for chassis mount applications and has a termination type of screw. The capacitor is RoHS compliant and has a packaging type of bulk with 32 pieces per package. It is not Reach SVHC compliant.
Capacitance330nF
Voltage Rating3kV
MountingChassis Mount
Quick Jump:
Technical Specifications
Kemet C4BSYBX3330ZALJ technical specifications.
General
| Capacitance | 330nF |
| Dielectric | PP |
| Dielectric Material | PP |
| ESR (Equivalent Series Resistance) | 5.4mR |
| Height | 30mm |
| Length | 42mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount |
| Package Quantity | 32 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C4BS |
| Termination | Screw |
| Tolerance | 5% |
| Voltage Rating | 3kV |
| Voltage Rating (AC) | 750V |
| DC Rated Voltage | 3kV |
| Width | 45mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C4BSYBX3330ZALJ Datasheet
Download the complete datasheet for Kemet C4BSYBX3330ZALJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

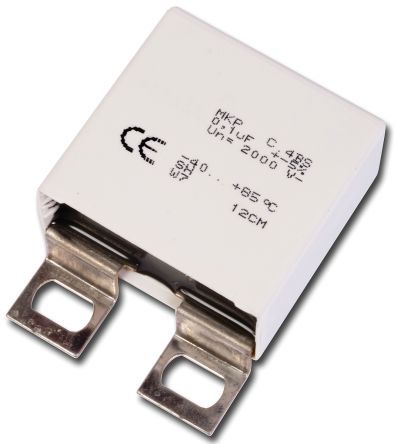

Product Images
