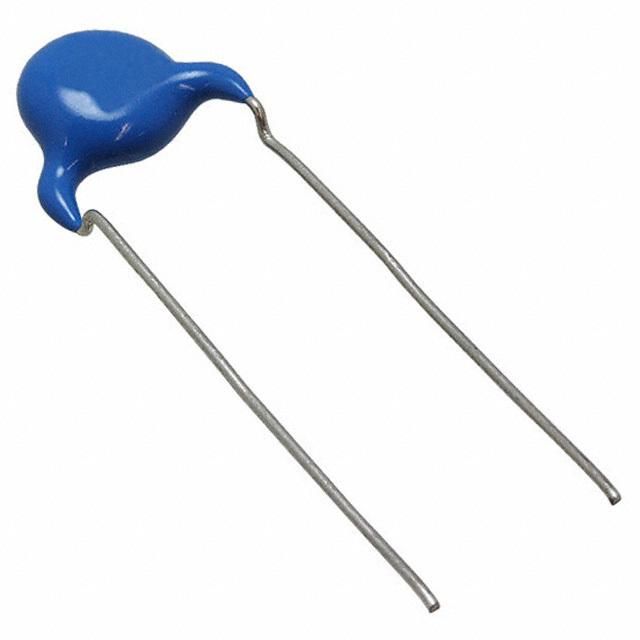

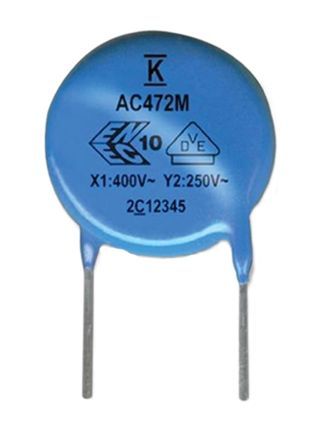

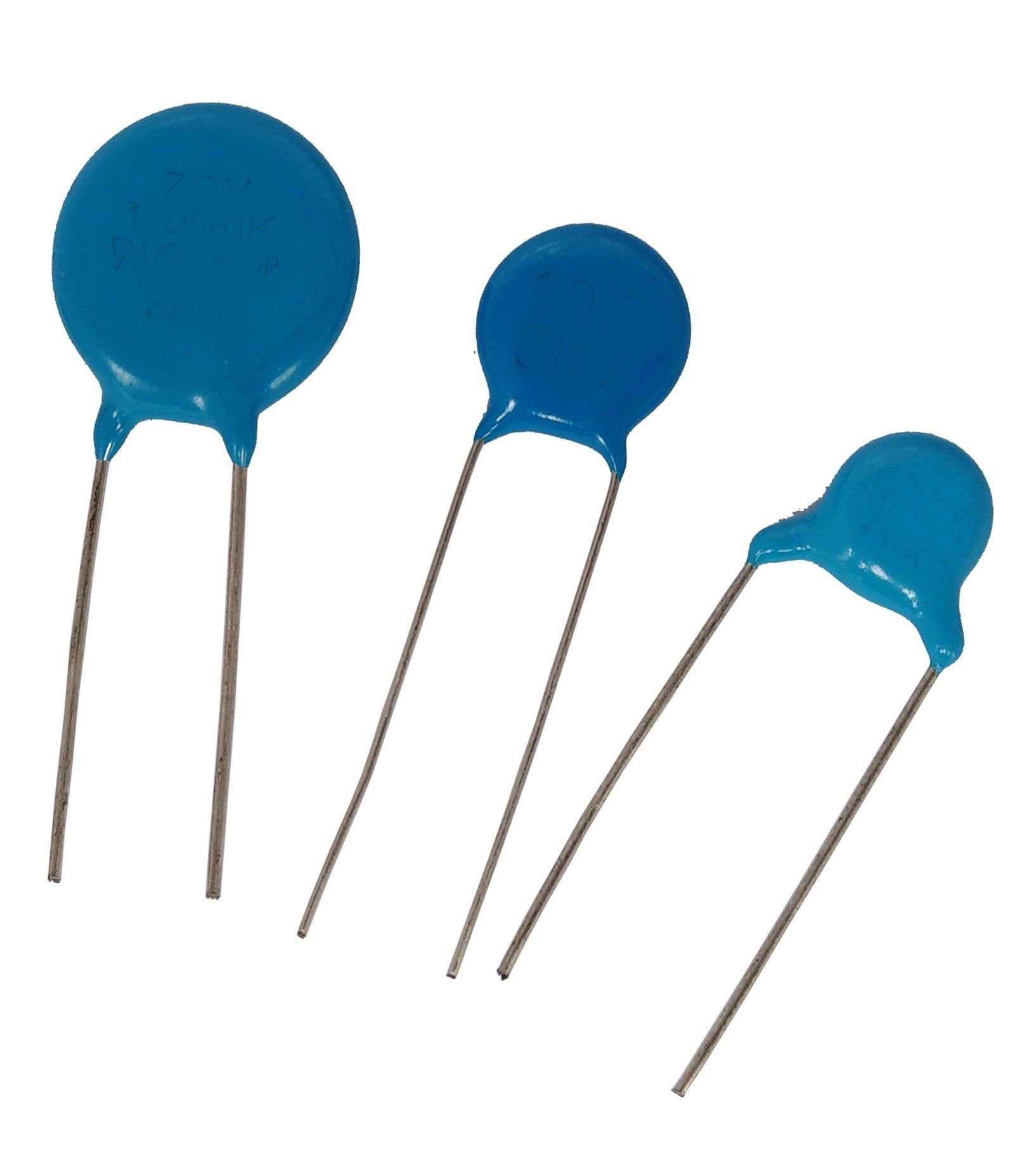

Radial ceramic capacitor featuring Y5V dielectric with a capacitance of 2.2nF and a tolerance of 20%. This through-hole component operates across a temperature range of -25°C to 125°C, with a dissipation factor of 5%. It boasts a 10mm lead pitch and kinked lead style, housed in a 9mm diameter, 5.5mm depth radial package. Rated for 250V AC and 400V DC, this RoHS compliant capacitor is suitable for general applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Kemet C921U222MUVDBA7317 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Kemet C921U222MUVDBA7317 technical specifications.
| Capacitance | 2.2nF |
| Package/Case | Radial |
| Depth | 5.5mm |
| Diameter | 9mm |
| Dielectric | Y5V |
| Dielectric Material | Ceramic |
| Dissipation Factor | 5% |
| Lead Pitch | 10mm |
| Lead/Base Style | Kinked |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Cut Tape |
| Ratings | X1, Y1 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C900 |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 250V |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 400V |
| RoHS | Compliant |
Download the complete datasheet for Kemet C921U222MUVDBA7317 to view detailed technical specifications.
