Radial multilayer ceramic capacitor with 10nF capacitance and 100V DC rating. Features X7R dielectric, 10% tolerance, and a maximum operating temperature of 125°C. Through-hole mounting with a 5.08mm lead pitch and 0.635mm lead diameter. Molded package construction with dimensions of 4.83mm length, 2.29mm width, and 2.29mm depth.
PackageMolded
Capacitance10nF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Kemet CK05BX103K technical specifications.
General
| Capacitance | 10nF |
| Package/Case | Molded |
| Construction | RADIAL |
| Depth | 2.29mm |
| Dielectric | X7R |
| Dissipation Factor | 2.5% |
| Height | 4.83mm |
| Height - Seated (Max) | 0.2inch |
| Lead Diameter | 0.635mm |
| Lead Pitch | 5.08mm |
| Lead/Base Style | Flat |
| Length | 4.83mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | CK05 |
| Termination | Radial |
| Tolerance | 10% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Width | 2.29mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Kemet CK05BX103K Datasheet
Download the complete datasheet for Kemet CK05BX103K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

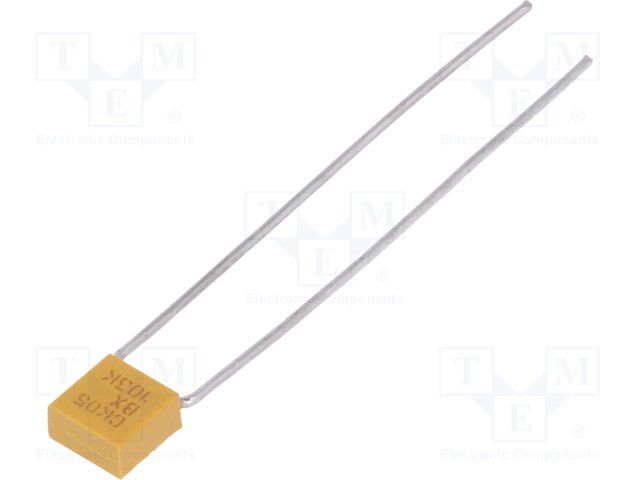

Product Images
