0.1F, 5.5V cylindrical supercapacitor with 25 Ohm ESR and 150uA leakage current. Features a 10.5mm diameter, 5.5mm height, and 5mm lead pitch. Surface mountable with SMD/SMT termination, packaged in tape and reel. Operates from -25°C to 70°C with 80% capacitance tolerance. RoHS compliant.
PackageRadial
Voltage5.5V
Capacitance100mF
Voltage Rating5.5V
Quick Jump:
Technical Specifications
Kemet FC0H104ZFTBR24 technical specifications.
General
Capacitance
100mF
Package/Case
Radial
Construction
Cylindrical
Depth
5.5mm
Diameter
10.5mm
ESR (Equivalent Series Resistance)
25R
Height
5.5mm
Lead Pitch
5mm
Leakage Current
150uA
Length
10.8mm
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Mount
Surface Mount
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FC
Termination
SMD/SMT
Tolerance
80%
Voltage
5.5V
Voltage Rating
5.5V
DC Rated Voltage
5.5V
Width
10.8mm
Compliance
RoHS
Compliant
Datasheet
Kemet FC0H104ZFTBR24 Datasheet
Download the complete datasheet for Kemet FC0H104ZFTBR24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

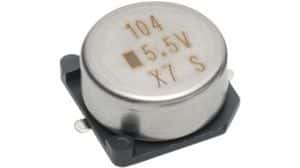

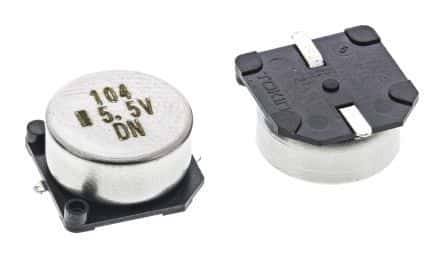

Product Images
