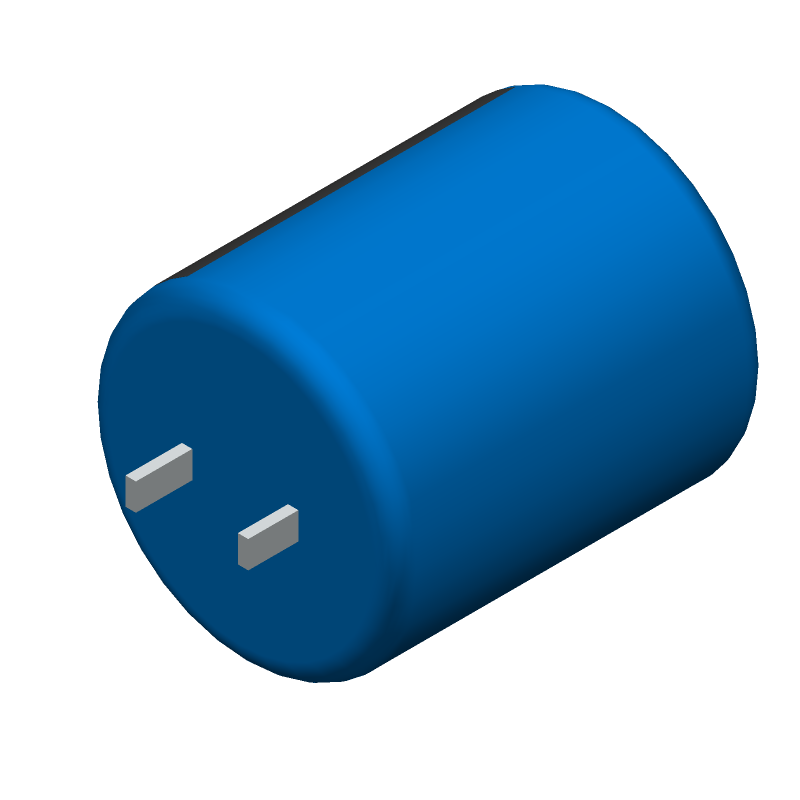

Radial, through-hole mounted electric double-layer capacitor with 470mF capacitance and 5.5V DC rated voltage. Features a cylindrical construction with a 14.5mm diameter, 18mm depth, and 5.08mm lead pitch. Offers 120 Ohms ESR and 710µA leakage current, operating within a -25°C to 70°C temperature range. This RoHS compliant component is supplied in bulk packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Kemet FG0H474ZF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Kemet FG0H474ZF technical specifications.
| Capacitance | 470mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Depth | 18mm |
| Diameter | 14.5mm |
| ESR (Equivalent Series Resistance) | 120R |
| Height | 18mm |
| Lead Pitch | 5.08mm |
| Leakage Current | 710uA |
| Length | 18mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Orientation | Horizontal |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FG |
| Termination | Radial |
| Tolerance | 80% |
| Voltage | 5.5V |
| Voltage Rating | 5.5V |
| DC Rated Voltage | 5.5V |
| RoHS | Compliant |
Download the complete datasheet for Kemet FG0H474ZF to view detailed technical specifications.
