1 Farad radial aluminum cylindrical supercapacitor, featuring a 5.5V DC rated voltage and 35 Ohm ESR. This through-hole mount component operates within a temperature range of -25°C to 70°C and has a leakage current of 1.5mA. The capacitor measures 21.5mm in diameter and 9.5mm in height with a 7.62mm lead pitch, presented in bulk packaging.
PackageRadial
Voltage5.5V
Capacitance1F
Voltage Rating5.5V
Quick Jump:
Technical Specifications
Kemet FGH0H105ZF technical specifications.
General
| Capacitance | 1F |
| Package/Case | Radial |
| Construction | Cylindrical |
| Depth | 9.5mm |
| Diameter | 21.5mm |
| ESR (Equivalent Series Resistance) | 35R |
| Height | 9.5mm |
| Lead Pitch | 7.62mm |
| Leakage Current | 1.5mA |
| Length | 9.5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Orientation | Horizontal |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FGH |
| Termination | Radial |
| Tolerance | 80% |
| Voltage | 5.5V |
| Voltage Rating | 5.5V |
| DC Rated Voltage | 5.5V |
Compliance
| RoHS | Compliant |
Datasheet
Kemet FGH0H105ZF Datasheet
Download the complete datasheet for Kemet FGH0H105ZF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

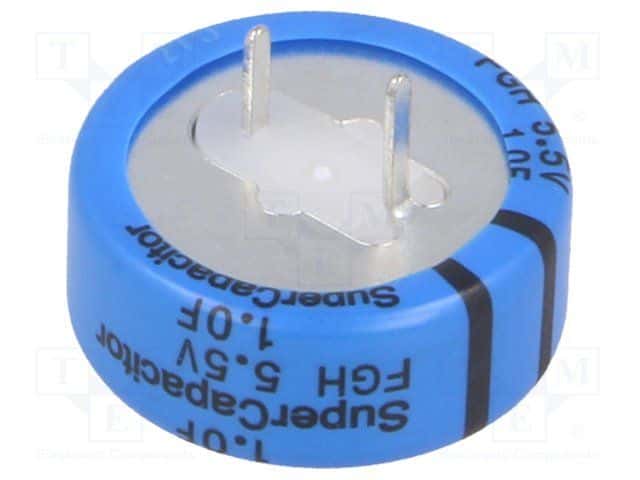

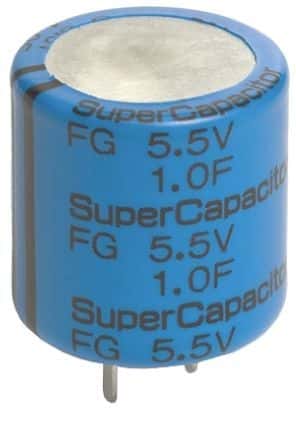

Product Images
