Kemet
FS0H105ZF

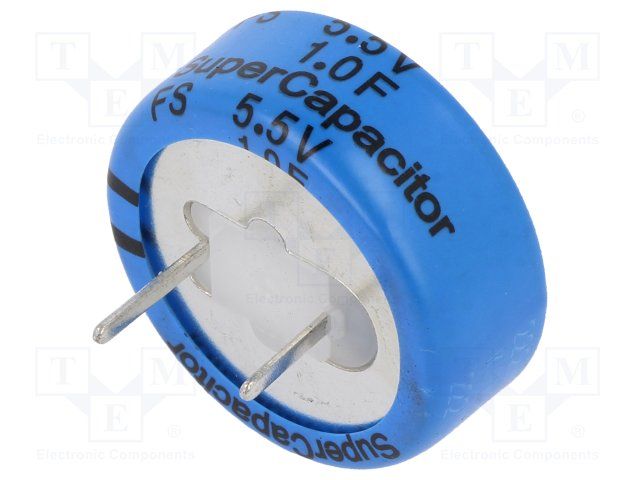

Cap Supercap 1F 5.5V -20% to 80% (28.5 X 14mm) Radial Aluminum Cylindrical Can 10.16mm 7 Ohm 70°C Box
PackageRadial
Voltage5.5V
Capacitance1F
Voltage Rating5.5V
Quick Jump:
Technical Specifications
Kemet FS0H105ZF technical specifications.
General
Capacitance
1F
Package/Case
Radial
Construction
Cylindrical
Depth
14mm
Diameter
28.5mm
ESR (Equivalent Series Resistance)
7R
Lead Pitch
10.16mm
Leakage Current
1.5mA
Length
13mm
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Mount
Through Hole
Orientation
Horizontal
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FS
Termination
Radial
Tolerance
80%
Voltage
5.5V
Voltage Rating
5.5V
DC Rated Voltage
5.5V
Compliance
RoHS
Compliant
Datasheet
Kemet FS0H105ZF Datasheet
Download the complete datasheet for Kemet FS0H105ZF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
