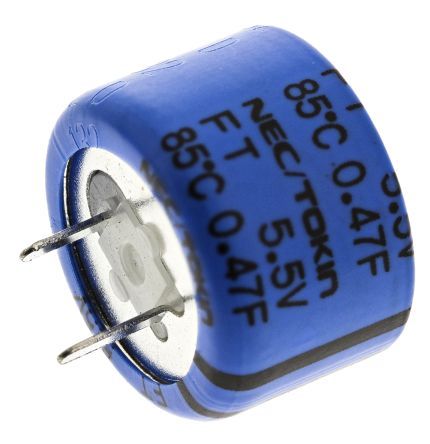

Radial supercapacitor with 470mF capacitance and 5.5V DC rated voltage. Features a cylindrical construction with a 16.5mm diameter and 13mm height, designed for through-hole mounting with a 5.08mm lead pitch. Offers a low ESR of 6.5 Ohms and a leakage current of 710uA. Operates across a wide temperature range from -40°C to 85°C.
PackageRadial
Voltage5.5V
Capacitance470mF
Voltage Rating5.5V
Quick Jump:
Technical Specifications
Kemet FT0H474ZF technical specifications.
General
| Capacitance | 470mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Depth | 13mm |
| Diameter | 16.5mm |
| ESR (Equivalent Series Resistance) | 6.5R |
| Height | 13mm |
| Lead Pitch | 5.08mm |
| Leakage Current | 710uA |
| Length | 13mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Orientation | Horizontal |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FT |
| Termination | Radial |
| Tolerance | 80% |
| Voltage | 5.5V |
| Voltage Rating | 5.5V |
| DC Rated Voltage | 5.5V |
Compliance
| RoHS | Compliant |
