Surface mount film capacitor featuring a 63V DC rating and 0.1µF (100nF) capacitance. This polyester dielectric component is housed in an 1812 (4532) case code, measuring 4.5mm in length, 3.2mm in width, and 2.4mm in height. It operates across a temperature range of -55°C to 125°C with a dissipation factor of 0.8% and a 10% tolerance. Designed for high-temperature applications and AEC-Q200 qualified, it is supplied on tape and reel.
Package1812
Voltage63V
Capacitance100nF
Voltage Rating63V
Quick Jump:
Technical Specifications
Kemet LDEDC3100KA5N00 technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Construction | Flat |
| Depth | 3.2mm |
| Dielectric Material | Polyester |
| Dissipation Factor | 0.8% |
| Features | High Temperature |
| Height | 2.4mm |
| Length | 4.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LDE |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 63V |
| Voltage Rating | 63V |
| Voltage Rating (AC) | 40V |
| DC Rated Voltage | 63V |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet LDEDC3100KA5N00 Datasheet
Download the complete datasheet for Kemet LDEDC3100KA5N00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

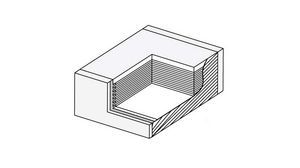

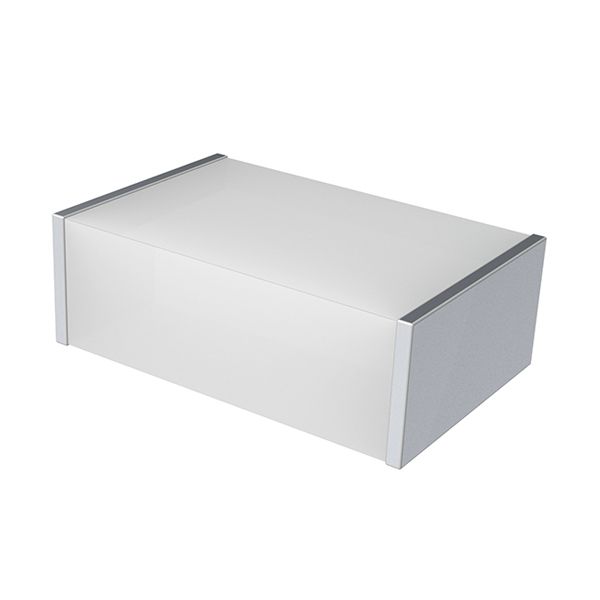

Product Images
