1.5µF, 63V DC (40V AC) polyester film capacitor, 10% tolerance, designed for surface mount applications. Features a stacked construction and a high operating temperature range of -55°C to 125°C, making it suitable for automotive environments. Packaged in cut tape with solder terminations, this component meets AEC-Q200 standards and is RoHS compliant.
Package2824
Capacitance1.5uF
Voltage Rating63V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet LDEDE4150KA0N00 technical specifications.
General
| Capacitance | 1.5uF |
| Case Code (Imperial) | 2824 |
| Case Code (Metric) | 7260 |
| Package/Case | 2824 |
| Dielectric Material | Polyester |
| Features | High Temperature |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LDE |
| Termination | Solder |
| Tolerance | 10% |
| Voltage Rating | 63V |
| Voltage Rating (AC) | 40V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Kemet LDEDE4150KA0N00 Datasheet
Download the complete datasheet for Kemet LDEDE4150KA0N00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

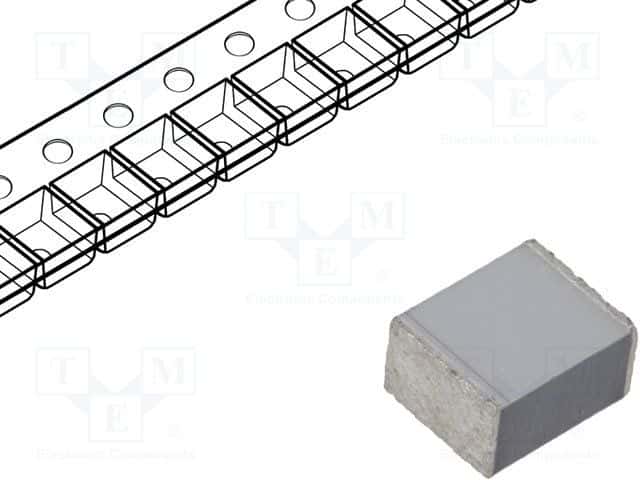

Product Images
