Kemet
PHE450MB6100JR06
Film Capacitor, Polypropylene, 630V, 5% +Tol, 5% -Tol, 0.1uF, Through Hole Mount, 7133, RADIAL LEADED, ROHS COMPLIANT
Film Capacitor, Polypropylene, 630V, 5% +Tol, 5% -Tol, 0.1uF, Through Hole Mount, 7133, RADIAL LEADED, ROHS COMPLIANT
PackageRadial
Capacitance100nF
Voltage Rating630V
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Kemet PHE450MB6100JR06 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Kemet PHE450MB6100JR06 technical specifications.
General
| Capacitance | 100nF |
| Package/Case | Radial |
| Dielectric | PP |
| Dielectric Material | PP |
| Height | 8.5mm |
| Lead Diameter | 1mm |
| Lead Pitch | 15mm |
| Length | 16mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 600 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | PHE450 |
| Termination | PC Pins |
| Tolerance | 5% |
| Voltage Rating | 630V |
| Voltage Rating (AC) | 400V |
| DC Rated Voltage | 630V |
| Width | 18mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet PHE450MB6100JR06 Datasheet
Download the complete datasheet for Kemet PHE450MB6100JR06 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

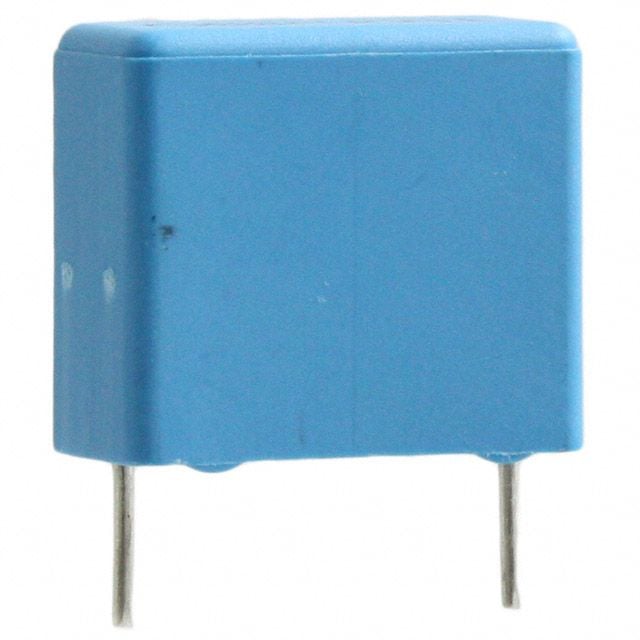

Product Images
