Radial film capacitor with 2.2µF capacitance and 20% tolerance. Features a 1kV DC rated voltage and 440V AC rating, suitable for X1 suppression applications. Constructed with a PP dielectric, this through-hole component operates from -40°C to 105°C. Dimensions are 41mm (length) x 21mm (depth) x 38mm (width) with a 37.5mm lead pitch.
PackageRadial
Capacitance2.2uF
MountingThrough Hole
Quick Jump:
Technical Specifications
Kemet PHE844RR7220MR06L2 technical specifications.
General
| Capacitance | 2.2uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 21mm |
| Dielectric | PP |
| Dielectric Material | PP |
| Height | 21mm |
| Lead Diameter | 1mm |
| Lead Pitch | 37.5mm |
| Length | 41mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 84 |
| Packaging | Tray |
| Ratings | X1 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PHE844 |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating (AC) | 440V |
| DC Rated Voltage | 1kV |
| Width | 38mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet PHE844RR7220MR06L2 Datasheet
Download the complete datasheet for Kemet PHE844RR7220MR06L2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

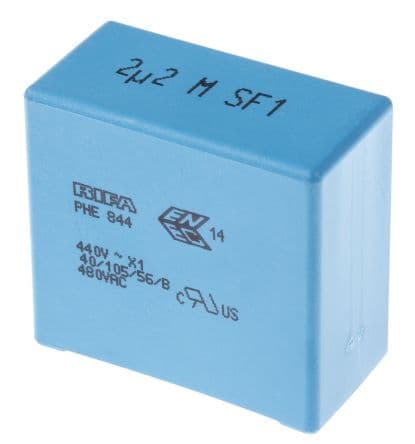

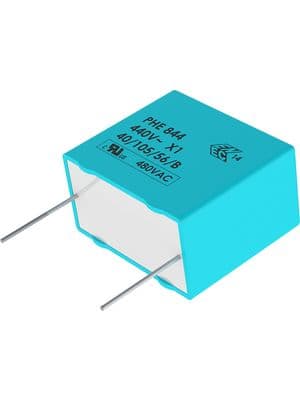

Product Images
