Quick Jump:
Technical Specifications
Kemet PHE845VD6100MR06L2 technical specifications.
General
| Capacitance | 100nF |
| Package/Case | Radial |
| Dielectric | PP |
| Dielectric Material | PP |
| Lead Pitch | 22.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 253 |
| Packaging | Bulk |
| Ratings | X1 |
| RoHS Compliant | Yes |
| Series | PHE845 |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 760V |
| Voltage Rating (AC) | 760V |
| DC Rated Voltage | 1.5kV |
Compliance
| RoHS | Compliant |
Datasheet
Kemet PHE845VD6100MR06L2 Datasheet
Download the complete datasheet for Kemet PHE845VD6100MR06L2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

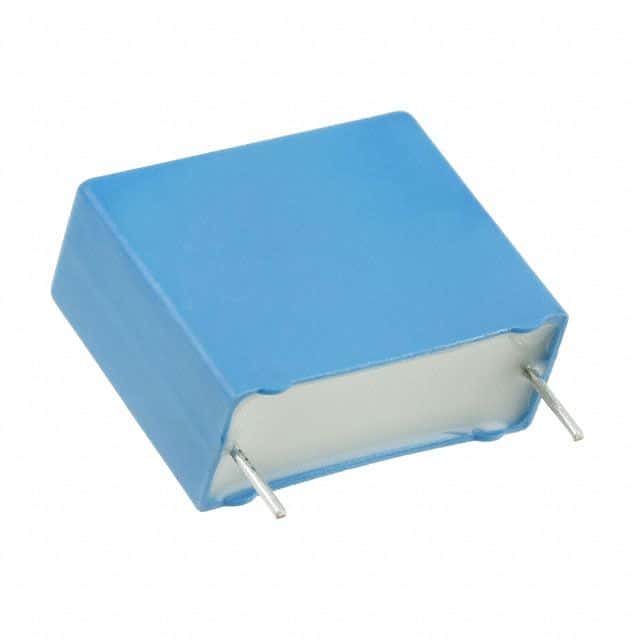

Product Images
