General purpose film capacitor with 470nF capacitance and 20% tolerance. Features a PP dielectric and a radial package for through-hole mounting. Rated for 1500VDC and 760VAC, with an operating temperature range of -40°C to 105°C. Dimensions are 41mm (length) x 16.5mm (depth) x 32mm (height), with a 37.5mm lead pitch. RoHS compliant.
PackageRadial
Capacitance470nF
MountingThrough Hole
Quick Jump:
Technical Specifications
Kemet PHE845VR6470MR06L2 technical specifications.
General
| Capacitance | 470nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 16.5mm |
| Dielectric | PP |
| Dielectric Material | PP |
| Height | 32mm |
| Height - Seated (Max) | 1.26inch |
| Lead Diameter | 1mm |
| Lead Pitch | 37.5mm |
| Lead/Base Style | Straight |
| Length | 41mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PHE845 |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating (AC) | 760V |
| DC Rated Voltage | 1.5kV |
| Width | 0.65inch |
Compliance
| RoHS | Compliant |
Datasheet
Kemet PHE845VR6470MR06L2 Datasheet
Download the complete datasheet for Kemet PHE845VR6470MR06L2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

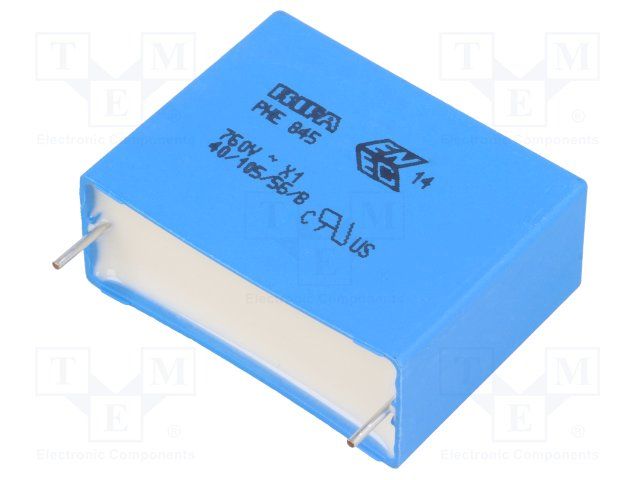

Product Images
