Radial leaded, through-hole mount paper capacitor with 100nF capacitance and 20% tolerance. Features a 275VAC/630VDC voltage rating, operating temperature range of -40°C to 110°C, and a dielectric material of paper. Dimensions include 27mm length, 8mm depth, 17mm height, 0.8mm lead diameter, and 22.5mm lead pitch. RoHS compliant and supplied in bulk packaging.
PackageRadial
Voltage275V
Capacitance100nF
MountingThrough Hole
Quick Jump:
Technical Specifications
Kemet PME271MD6100MR30 technical specifications.
General
| Capacitance | 100nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 8mm |
| Dielectric Material | Paper |
| Height | 17mm |
| Height - Seated (Max) | 0.669inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 22.5mm |
| Lead/Base Style | Straight |
| Length | 27mm |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PME271M |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 275V |
| Voltage Rating (AC) | 275V |
| DC Rated Voltage | 630V |
| Width | 0.315inch |
Compliance
| RoHS | Compliant |
Datasheet
Kemet PME271MD6100MR30 Datasheet
Download the complete datasheet for Kemet PME271MD6100MR30 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

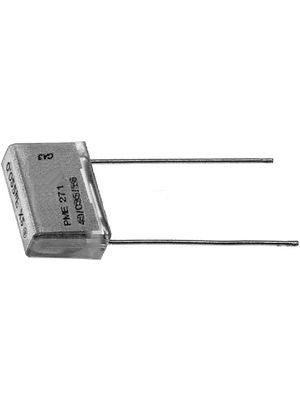

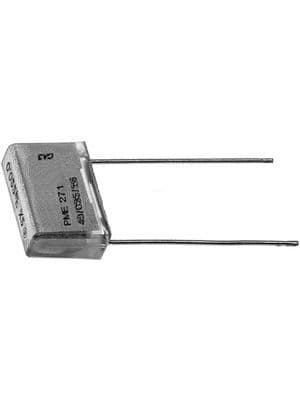

Product Images
