Radial film capacitor with 2.2nF capacitance and 20% tolerance. Features a paper dielectric, Y2 safety rating, and a DC rated voltage of 1kV, with an AC voltage rating of 250V. Operates from -40°C to 100°C with a dissipation factor of 1.3%. Dimensions are 13.5mm length, 3.9mm width, and 7.5mm height, with a 10.2mm lead pitch and 0.6mm lead diameter. Supplied on tape and reel for through-hole mounting.
PackageRadial
Capacitance2.2nF
Voltage Rating250V
MountingThrough Hole
Quick Jump:
Technical Specifications
Kemet PME271Y422MR19T0 technical specifications.
General
| Capacitance | 2.2nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 3.9mm |
| Dielectric Material | Paper |
| Dissipation Factor | 1.3% |
| Height | 7.5mm |
| Lead Diameter | 0.6mm |
| Lead Pitch | 10.2mm |
| Lead/Base Style | Straight |
| Length | 13.5mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 700 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | Y2 |
| RoHS Compliant | Yes |
| Series | PME271Y |
| Termination | PC Pins |
| Tolerance | 20% |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 1kV |
| Width | 3.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet PME271Y422MR19T0 Datasheet
Download the complete datasheet for Kemet PME271Y422MR19T0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

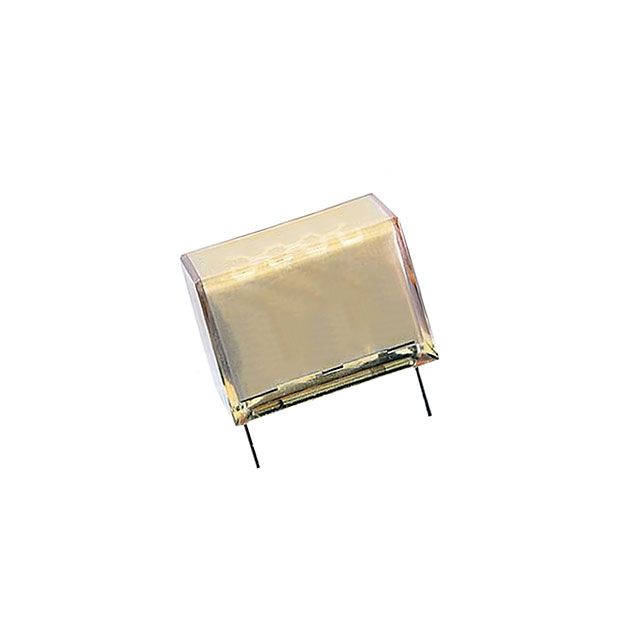

Product Images
