Radial film capacitor with 47nF capacitance and 20% tolerance, featuring a paper dielectric. Rated for 1000VDC and 300VAC, this Y2 suppression capacitor operates from -40°C to 115°C. It has a lead pitch of 22.5mm, lead diameter of 0.8mm, and dimensions of 27mm (length) x 8mm (width) x 8mm (depth).
PackageRadial
Capacitance47nF
Voltage Rating300V
Quick Jump:
Technical Specifications
Kemet PME271YD5470MR30 technical specifications.
General
| Capacitance | 47nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 8mm |
| Dielectric Material | Paper |
| Dissipation Factor | 1.3% |
| Lead Diameter | 0.8mm |
| Lead Pitch | 22.5mm |
| Lead/Base Style | Straight |
| Length | 27mm |
| Max Operating Temperature | 115°C |
| Min Operating Temperature | -40°C |
| Package Quantity | 200 |
| Packaging | Bulk |
| Ratings | Y2 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PME271Y |
| Termination | PC Pins |
| Tolerance | 20% |
| Voltage Rating | 300V |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 1kV |
| Weight | 0.194007oz |
| Width | 8mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet PME271YD5470MR30 Datasheet
Download the complete datasheet for Kemet PME271YD5470MR30 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

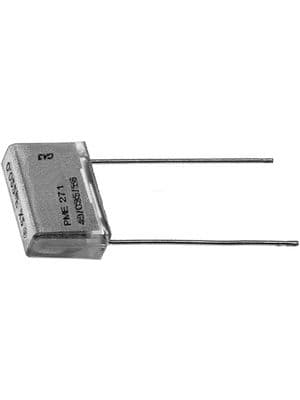

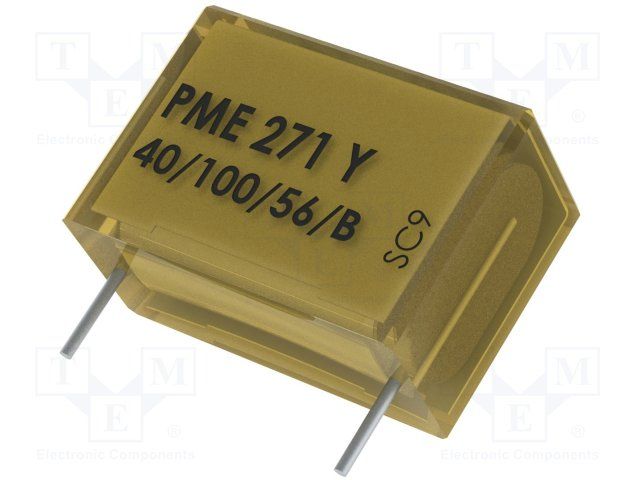

Product Images
