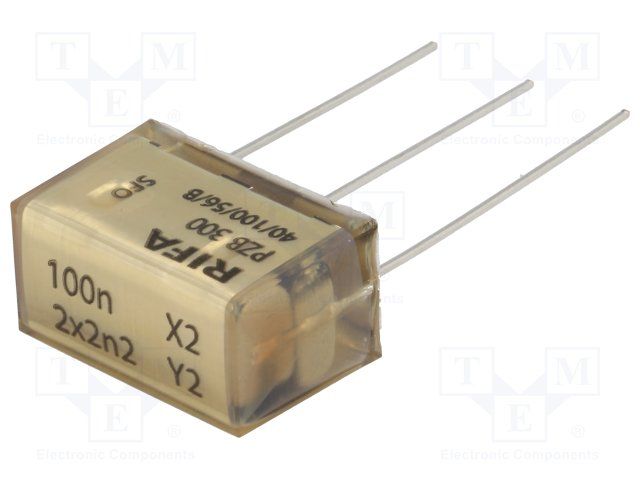

Radial leaded paper capacitor with 100nF capacitance and 20% tolerance. Features a 275V AC voltage rating, 1.3% dissipation factor, and operates from -40°C to 100°C. Through-hole mount design with straight PC pins and a 20mm lead pitch. Dimensions include 12.5mm depth, 16mm height, and 24mm length. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Kemet PZB300MC11R30 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 100nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 12.5mm |
| Dielectric Material | Paper |
| Dissipation Factor | 1.3% |
| Height | 16mm |
| Height - Seated (Max) | 0.63inch |
| Lead Diameter | 0.8mm |
| Lead Length | 30mm |
| Lead Pitch | 20mm |
| Lead/Base Style | Straight |
| Length | 24mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 150 |
| Packaging | Bulk |
| Pitch | 20mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PZB300 |
| Termination | PC Pins |
| Tolerance | 20% |
| Voltage Rating (AC) | 275V |
| Width | 12.5mm |
| RoHS | Compliant |
