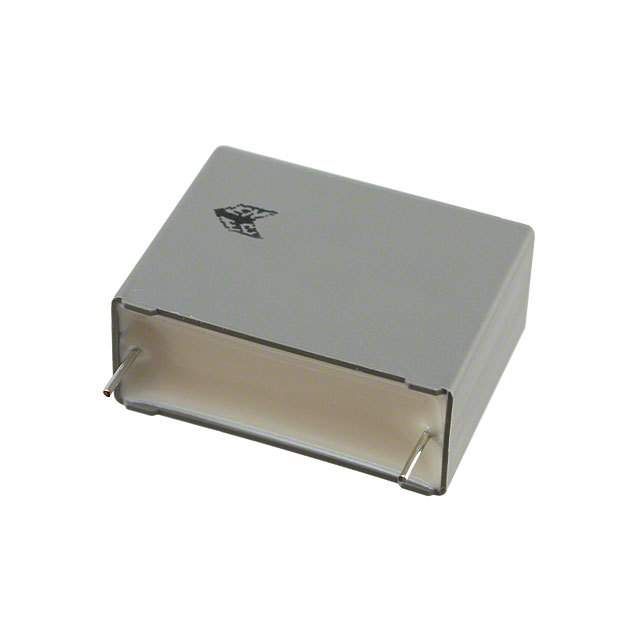

Radial leaded film capacitor with 2.2µF capacitance and 10% tolerance. Features a polypropylene dielectric and a 560V DC rated voltage, with an AC voltage rating of 275V. Designed for through-hole mounting with a 27.5mm lead pitch and 0.8mm lead diameter. Operates within a temperature range of -40°C to 110°C, offering a dissipation factor of 10%.
PackageRadial
Capacitance2.2uF
Voltage Rating275V
MountingThrough Hole
Quick Jump:
Technical Specifications
Kemet R46KR422000M2K technical specifications.
General
| Capacitance | 2.2uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 13mm |
| Dielectric | PP |
| Dielectric Material | PP |
| Dissipation Factor | 10% |
| Height | 13mm |
| Lead Diameter | 0.8mm |
| Lead Pitch | 27.5mm |
| Length | 32mm |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 480 |
| Packaging | Bulk |
| Ratings | X2 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | R46 |
| Termination | PC Pins |
| Tolerance | 10% |
| Voltage Rating | 275V |
| Voltage Rating (AC) | 275V |
| DC Rated Voltage | 560V |
| Width | 25mm |
Compliance
| RoHS | Compliant |
