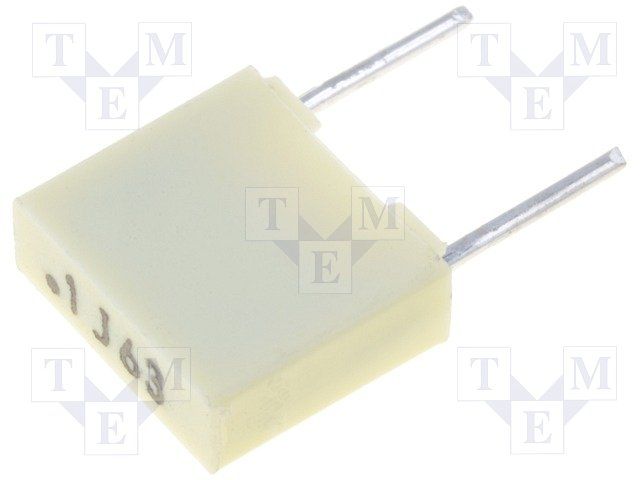

General purpose film capacitor with 100nF capacitance and 63V DC voltage rating. Features PET dielectric, 5% tolerance, and a radial, through-hole mounting package with 5mm lead pitch. Operates from -55°C to 105°C and is AEC-Q200 qualified. Dimensions are 7.2mm (length) x 2.5mm (width) x 6.5mm (height).
PackageRadial
Voltage63V
Capacitance100nF
Voltage Rating63V
Quick Jump:
Technical Specifications
Kemet R82DC3100AA50J technical specifications.
General
Capacitance
100nF
Package/Case
Radial
Construction
RADIAL
Depth
2.5mm
Dielectric
PET
Dielectric Material
Polyester
Dissipation Factor
80%
Lead Diameter
0.5mm
Lead Pitch
5mm
Length
7.2mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
3000
Packaging
Bulk
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
R82
Termination
Radial
Tolerance
5%
Type
General Purpose
Voltage
63V
Voltage Rating
63V
Voltage Rating (AC)
40V
DC Rated Voltage
63V
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Kemet R82DC3100AA50J Datasheet
Download the complete datasheet for Kemet R82DC3100AA50J to view detailed technical specifications.
