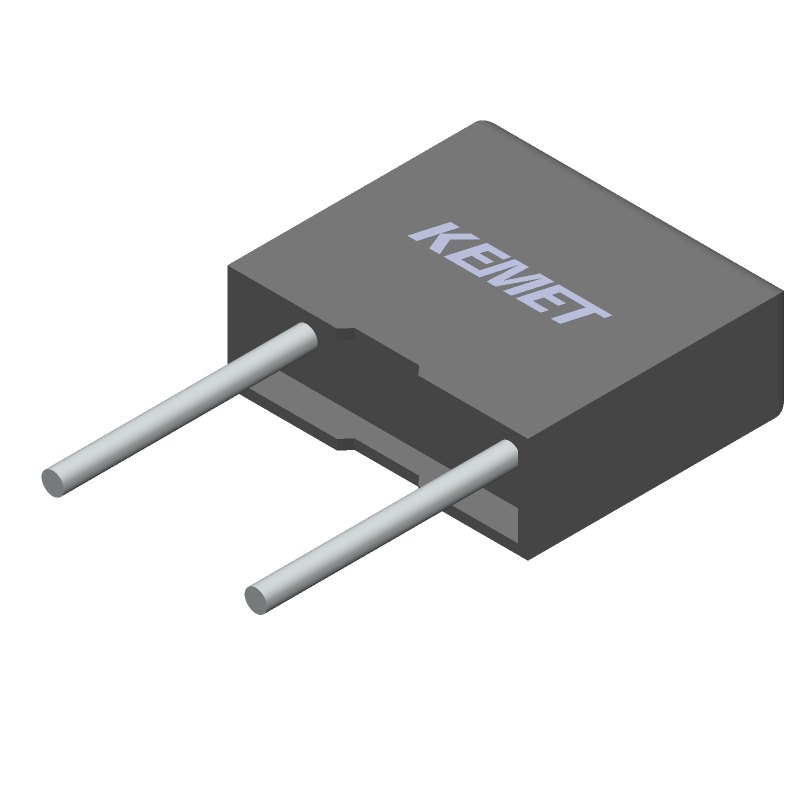

General purpose radial polyester film capacitor, 100V DC rated voltage, 63V AC rated voltage, with a capacitance of 47nF and a tolerance of 5%. Features a 5mm lead pitch, 0.5mm lead diameter, and a radial construction with dimensions of 7.2mm length, 2.5mm width, and 6.5mm height. Operates across a temperature range of -55°C to 105°C, with a dissipation factor of 80%. Through-hole PCB mountable, AEC-Q200 rated, and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Kemet R82EC2470AA60J datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Kemet R82EC2470AA60J technical specifications.
| Capacitance | 47nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 2.5mm |
| Dielectric | PET |
| Dielectric Material | Polyester |
| Dissipation Factor | 80% |
| Height | 6.5mm |
| Lead Diameter | 0.5mm |
| Lead Pitch | 5mm |
| Length | 7.2mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 3000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| RoHS Compliant | Yes |
| Series | R82 |
| Termination | Radial |
| Tolerance | 5% |
| Type | General Purpose |
| Voltage | 100V |
| Voltage Rating | 100V |
| Voltage Rating (AC) | 63V |
| DC Rated Voltage | 100V |
| Width | 2.5mm |
| RoHS | Compliant |
