General purpose film capacitor with 1µF capacitance and 100V DC rating, featuring a PET dielectric and 5% tolerance. This radial, through-hole component offers a 5mm lead pitch, 0.5mm lead diameter, and operates from -55°C to 105°C. Dimensions are 7.2mm (length) x 6mm (width/depth) x 11mm (height). AEC-Q200 qualified and RoHS compliant.
PackageRadial
Voltage100V
Capacitance1uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Kemet R82EC4100DQ70J technical specifications.
General
| Capacitance | 1uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 6mm |
| Dielectric | PET |
| Dielectric Material | Polyester |
| Dissipation Factor | 80% |
| Height | 11mm |
| Lead Diameter | 0.5mm |
| Lead Pitch | 5mm |
| Length | 7.2mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 1400 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | R82 |
| Termination | Radial |
| Tolerance | 5% |
| Type | General Purpose |
| Voltage | 100V |
| Voltage Rating | 100V |
| Voltage Rating (AC) | 63V |
| DC Rated Voltage | 100V |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet R82EC4100DQ70J Datasheet
Download the complete datasheet for Kemet R82EC4100DQ70J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

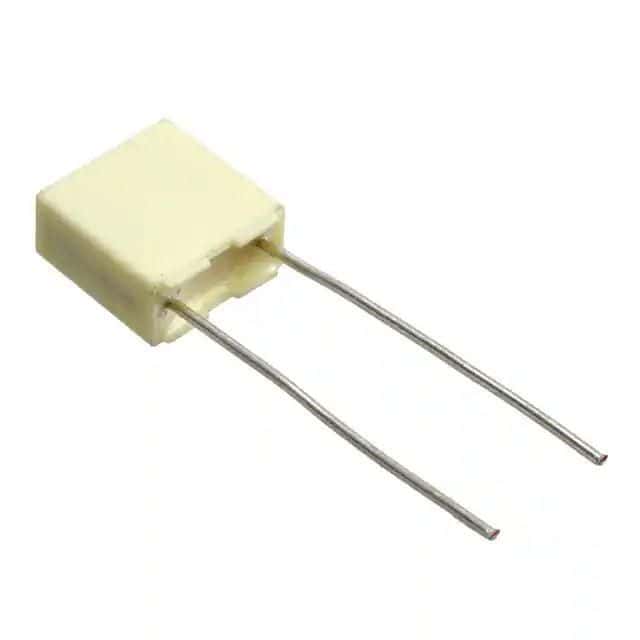

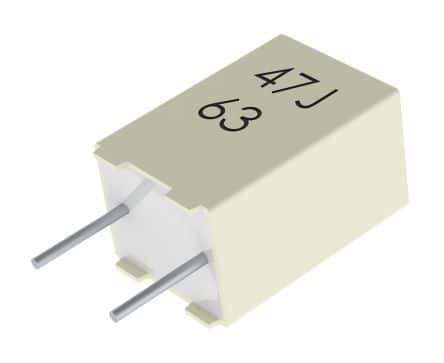

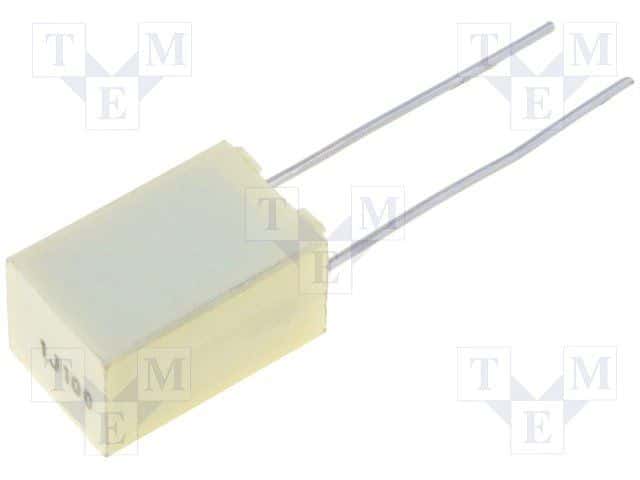

Product Images
