The SU9V-01100 is a 100mA EMI filter with a DC resistance of 8 ohms. It has a maximum operating temperature of 120°C and a minimum operating temperature of -25°C. The filter is packaged in bulk and is through-hole mounted. It is RoHS compliant and has a voltage rating of 250V AC.
Current Rating100mA
MountingThrough Hole
Inductance10mH
Quick Jump:
Technical Specifications
Kemet SU9V-01100 technical specifications.
General
| Current Rating | 100mA |
| DC Resistance (DCR) | 8R |
| Depth | 11mm |
| Height | 17mm |
| Inductance | 10mH |
| Lead/Base Style | Pin |
| Length | 17mm |
| Max Current Rating | 100mA |
| Max DC Current | 100mA |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Lines | 2 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SU |
| Termination | Radial |
| Test Frequency | 1kHz |
| Voltage Rating (AC) | 250V |
| Width | 11mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet SU9V-01100 Datasheet
Download the complete datasheet for Kemet SU9V-01100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

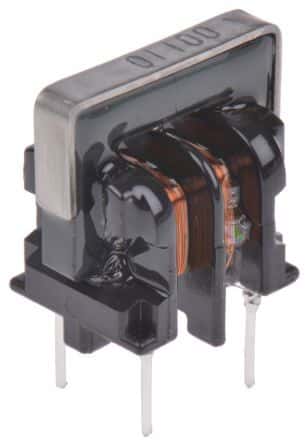

Product Images
