Solid tantalum capacitor featuring 100µF capacitance and 10V DC rated voltage with 10% tolerance. This axial component offers 1 Ohm ESR and a maximum operating temperature of 125°C. The metal package measures 7.34mm in diameter and 17.42mm in length, with a 0.64mm lead diameter. It operates from -55°C to 125°C, exhibits 5µA leakage current, and a 6% dissipation factor.
PackageMetal
Voltage10V
Capacitance100uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kemet T110C107K010AT technical specifications.
General
| Body Diameter | 7.09mm |
| Capacitance | 100uF |
| Package/Case | Metal |
| Construction | AXIAL |
| Diameter | 7.34mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 1R |
| Height | 16.5mm |
| Lead Diameter | 0.64mm |
| Leakage Current | 5uA |
| Length | 17.42mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Package Quantity | 20 |
| Packaging | Bulk |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | T110 |
| Termination | Axial |
| Tolerance | 10% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T110C107K010AT Datasheet
Download the complete datasheet for Kemet T110C107K010AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

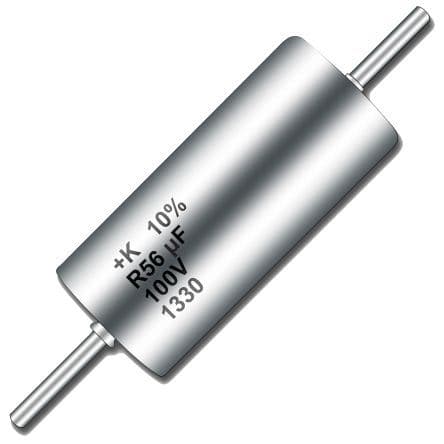

Product Images
