Polarized tantalum capacitor with 0.1µF capacitance and 35V DC rated voltage. Features 10% tolerance, 26Ω ESR, and 500nA leakage current. Designed for through-hole mounting with radial leads, a 4.5mm body diameter, and 2.54mm lead pitch. Operating temperature range is -55°C to 125°C.
PackageDipped
Voltage35V
Capacitance100nF
Voltage Rating35V
Quick Jump:
Technical Specifications
Kemet T350A104K035AT technical specifications.
General
Body Diameter
4.5mm
Capacitance
100nF
Package/Case
Dipped
Construction
RADIAL
Diameter
4.5mm
Dielectric Material
Tantalum
Dissipation Factor
3%
ESR (Equivalent Series Resistance)
26R
Features
General Purpose
Height
7.1mm
Lead Diameter
0.5mm
Lead Free
Lead Free
Lead Pitch
2.54mm
Leakage Current
500nA
Length
7.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
1000
Packaging
Bulk
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
T350, UltraDip II
Termination
Radial
Tolerance
10%
Voltage
35V
Voltage Rating
35V
Voltage Rating (AC)
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Kemet T350A104K035AT Datasheet
Download the complete datasheet for Kemet T350A104K035AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

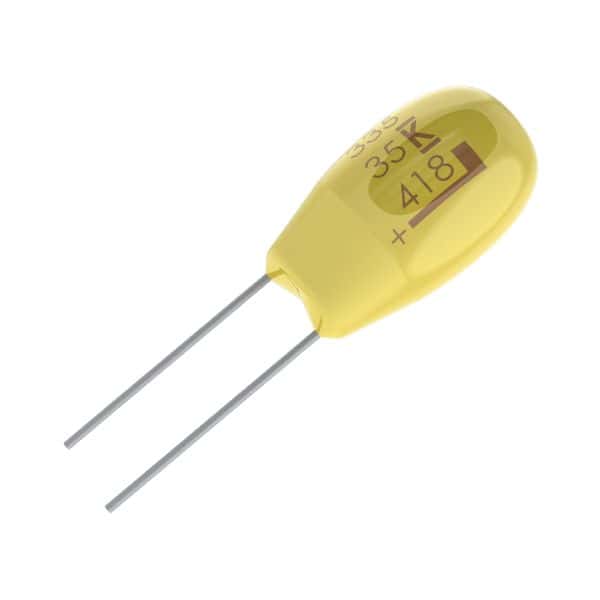

Product Images
