Solid Tantalum Capacitor, 4.7µF capacitance, 35V DC rated voltage, and 10% tolerance. Features a 5% dissipation factor and 3Ω ESR. Operating temperature range from -55°C to 125°C. Dipped package with radial leads on a 5.08mm pitch, suitable for through-hole mounting. Leakage current is 1.3µA.
PackageDipped
Capacitance4.7uF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Kemet T352E475K035AT technical specifications.
General
| Capacitance | 4.7uF |
| Package/Case | Dipped |
| Construction | RADIAL |
| Dielectric Material | Tantalum |
| Dissipation Factor | 5% |
| ESR (Equivalent Series Resistance) | 3R |
| Features | General Purpose |
| Height | 11.7mm |
| Lead Diameter | 0.5mm |
| Lead Pitch | 5.08mm |
| Leakage Current | 1.3uA |
| Length | 11.7mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Polarity | Polar |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | T352, UltraDip II |
| Termination | Radial |
| Tolerance | 10% |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T352E475K035AT Datasheet
Download the complete datasheet for Kemet T352E475K035AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

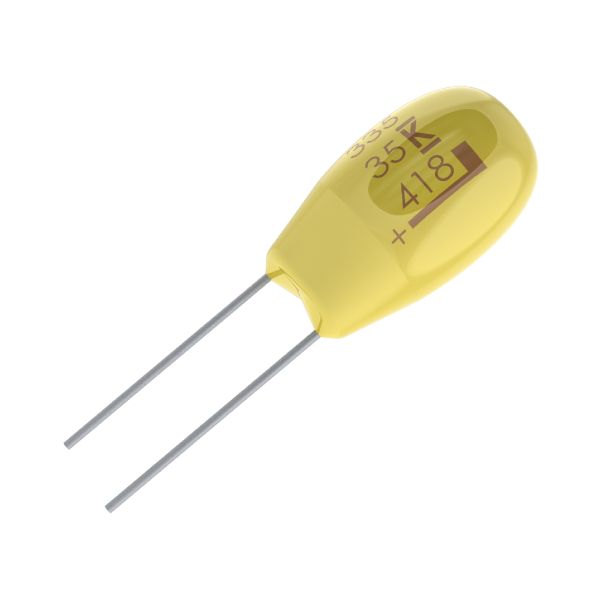

Product Images
