Polarized tantalum capacitor, 4.7µF capacitance, 25V DC rated voltage, and 10% tolerance. Features a 1411 (3528 metric) surface mount case code with a 1.5Ω ESR and 1.2µA leakage current. Operating temperature range from -55°C to 125°C, with a ripple current of 238mA. This general-purpose component is RoHS compliant and supplied in tape and reel packaging.
Package1411
Voltage25V
Capacitance4.7uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Kemet T491B475K025AT technical specifications.
General
Capacitance
4.7uF
Case Code (Imperial)
1411
Case Code (Metric)
3528
Package/Case
1411
Construction
Flat
Depth
2.8mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
1.5R
Failure Rate
0.001%
Features
General Purpose
Height
1.9mm
Height - Seated (Max)
0.083inch
Lead Free
Lead Free
Lead Pitch
1.9mm
Leakage Current
1.2uA
Length
3.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
238mA
RoHS Compliant
Yes
Series
T491
Termination
SMD/SMT
Tolerance
10%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
Kemet T491B475K025AT Datasheet
Download the complete datasheet for Kemet T491B475K025AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

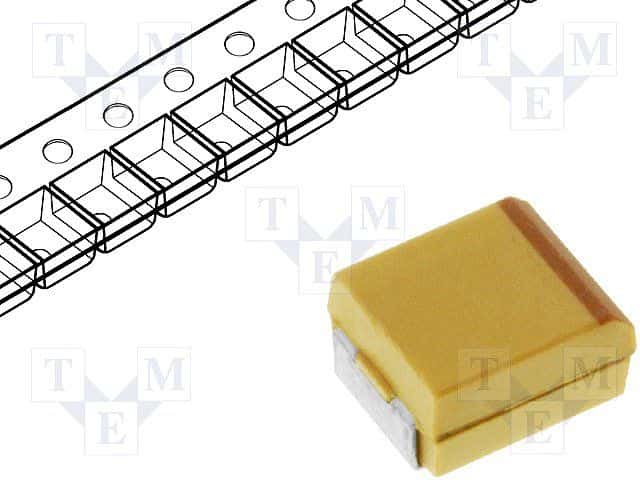

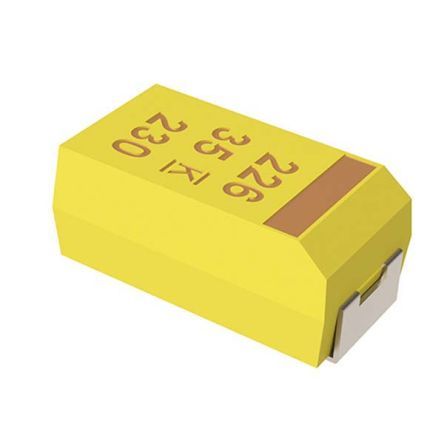

Product Images
