Polarized tantalum capacitor with 100µF capacitance and 10% tolerance. Features a 10V DC rated voltage, 1.2Ω ESR, and 8% dissipation factor. Designed for surface mount applications with a 2413 (6032 metric) case code, operating from -55°C to 125°C. Includes 8µA leakage current and 303mA ripple current capability. RoHS compliant and lead-free.
PackageMolded
Voltage10V
Capacitance100uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kemet T491C107K010AT technical specifications.
General
| Capacitance | 100uF |
| Case Code (Imperial) | 2312 |
| Case Code (Metric) | 6032 |
| Package/Case | Molded |
| Construction | Flat |
| Depth | 3.2mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 1.2R |
| Failure Rate | 0.001% |
| Features | General Purpose |
| Height | 2.5mm |
| Height - Seated (Max) | 0.11inch |
| Lead Free | Lead Free |
| Lead Pitch | 2.9mm |
| Leakage Current | 8uA |
| Length | 6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 303mA |
| RoHS Compliant | Yes |
| Series | T491 |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T491C107K010AT Datasheet
Download the complete datasheet for Kemet T491C107K010AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

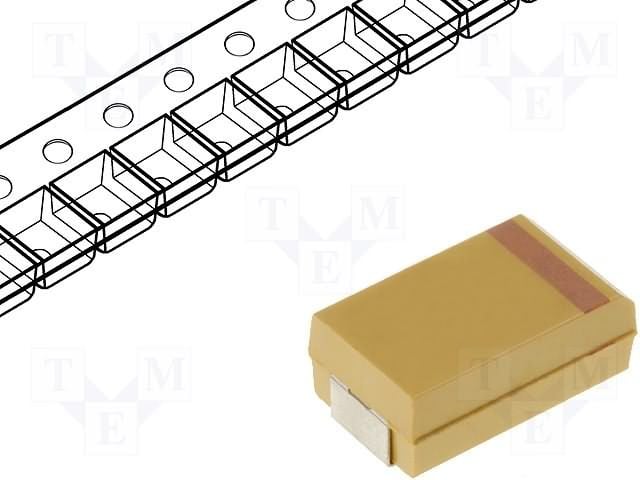

Product Images
