Polarized tantalum capacitor, 33uF capacitance, 16V DC rated voltage, 20% tolerance. Surface mount component with a 6032 metric case code (2312 imperial), featuring a molded construction and flat profile. Offers 1.2 Ohms ESR and a 6% dissipation factor, operating from -55°C to 125°C. Lead-free and RoHS compliant for general-purpose applications.
PackageMolded
Capacitance33uF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet T491C336M016AT technical specifications.
General
Capacitance
33uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
Molded
Construction
Flat
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
1.2R
Failure Rate
0.001%
Features
General Purpose
Height
2.8mm
Height - Seated (Max)
0.11inch
Lead Free
Lead Free
Length
6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
T491
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Kemet T491C336M016AT Datasheet
Download the complete datasheet for Kemet T491C336M016AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

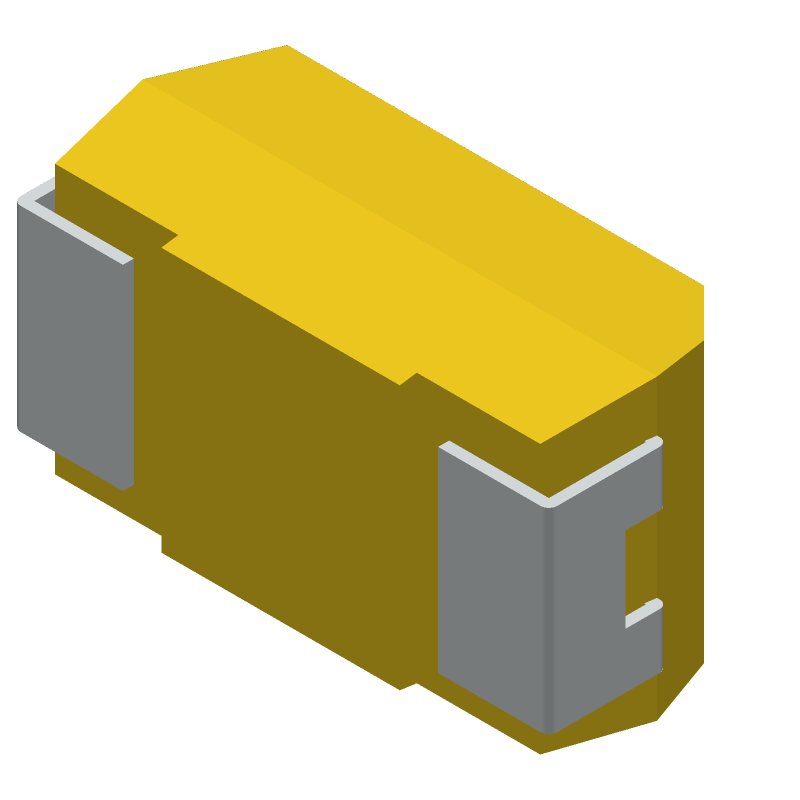

Product Images
