Polarized tantalum capacitor, 33µF capacitance, 35V DC rated voltage, 10% tolerance. Features a 2917 (7343 metric) surface mount chip package with a flat construction. Operating temperature range from -55°C to 125°C, with 600mΩ ESR and 11.6µA leakage current. Lead-free and RoHS compliant.
Package2917
Voltage35V
Capacitance33uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Kemet T491X336K035AT technical specifications.
General
Capacitance
33uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
600mR
Failure Rate
0.001%
Features
General Purpose
Height
4mm
Height - Seated (Max)
0.169inch
Lead Free
Lead Free
Lead Pitch
3.6mm
Leakage Current
11.6uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
T491
Termination
SMD/SMT
Tolerance
10%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kemet T491X336K035AT Datasheet
Download the complete datasheet for Kemet T491X336K035AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

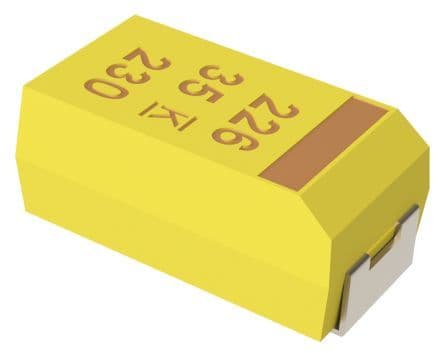

Product Images
