220µF, 6.3V polarized tantalum capacitor for general purpose applications. Features a 10% tolerance, 100mΩ ESR, and 13.9µA leakage current. Surface mountable in a 2917 (7343 metric) case code with a maximum operating temperature of 125°C. RoHS compliant and supplied on tape and reel.
Package2917
Capacitance220uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet T495D227K006ATE100 technical specifications.
General
Capacitance
220uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
100mR
Failure Rate
0.001%
Features
General Purpose
Height
3.1mm
Height - Seated (Max)
0.122inch
Leakage Current
13.9uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
490mA
RoHS Compliant
Yes
Series
T495
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Kemet T495D227K006ATE100 Datasheet
Download the complete datasheet for Kemet T495D227K006ATE100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

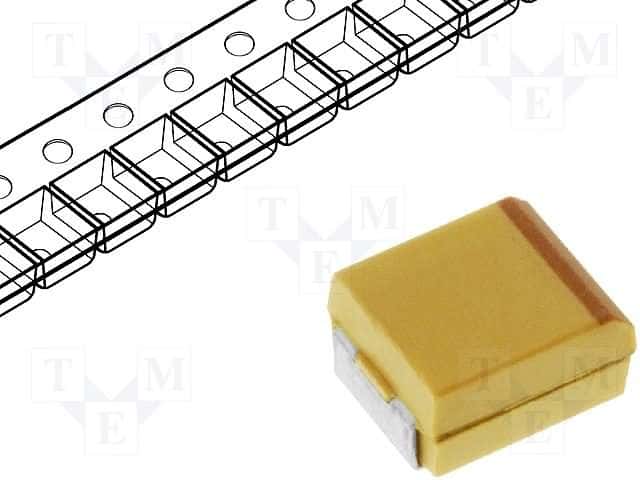

Product Images
