Solid Tantalum Capacitor, 220µF capacitance, 10V voltage rating, and 10% tolerance. Features 0.1 Ohm ESR and a maximum operating temperature of 125°C. Surface mountable in a 7343 metric case code (2917 imperial), with dimensions of 7.3mm length, 4.3mm width, and 3.1mm height. Packaged in tape and reel for automated assembly.
Package2917
Capacitance220uF
Resistance0.1R
Voltage Rating10V
Quick Jump:
Technical Specifications
Kemet T495D227K010ZTE100 technical specifications.
General
| Capacitance | 220uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 100mR |
| Features | General Purpose |
| Height | 3.1mm |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Resistance | 0.1R |
| RoHS Compliant | Yes |
| Series | T495 |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 10V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T495D227K010ZTE100 Datasheet
Download the complete datasheet for Kemet T495D227K010ZTE100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

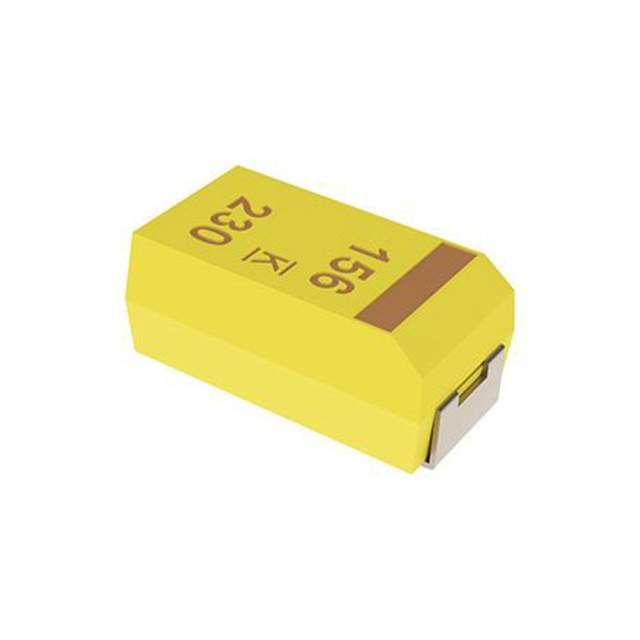

Product Images
