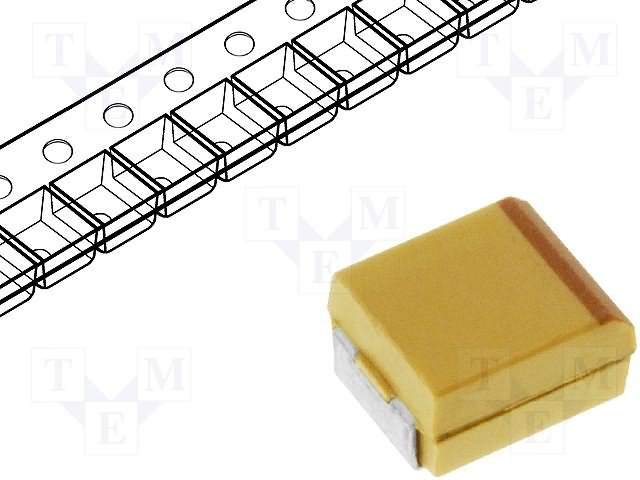

Polarized tantalum capacitor, 330µF capacitance, 6.3V DC rated voltage, and 20% tolerance. Features a 2917 (7343) surface mount case code with a 7343-31 package construction. Offers 100mΩ ESR, 490mA ripple current, and operates from -55°C to 125°C. This general-purpose component is RoHS compliant and supplied on tape and reel.
Package7343-31
Voltage6.3V
Capacitance330uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kemet T495D337K006ATE100 technical specifications.
General
Capacitance
330uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
7343-31
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
100mR
Features
General Purpose
Height
2.8mm
Lead Free
Lead Free
Lead Pitch
3.8mm
Leakage Current
20.8uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
490mA
RoHS Compliant
Yes
Series
T495
Termination
SMD/SMT
Tolerance
20%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kemet T495D337K006ATE100 Datasheet
Download the complete datasheet for Kemet T495D337K006ATE100 to view detailed technical specifications.
