Polarized tantalum capacitor, 47µF capacitance, 16V DC rated voltage, and 10% tolerance. Features a 2917 (7343 metric) surface mount case code with a maximum operating temperature of 125°C. This general-purpose component offers 150mΩ ESR and a dissipation factor of 6%. RoHS compliant and packaged on tape and reel.
Package2917
Voltage16V
Capacitance47uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Kemet T495D476K016ATE150 technical specifications.
General
| Capacitance | 47uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 150mR |
| Failure Rate | 0.001% |
| Features | General Purpose |
| Height | 2.8mm |
| Height - Seated (Max) | 0.122inch |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | T495 |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Weight | 0.023634oz |
| Width | 0.169inch |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T495D476K016ATE150 Datasheet
Download the complete datasheet for Kemet T495D476K016ATE150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

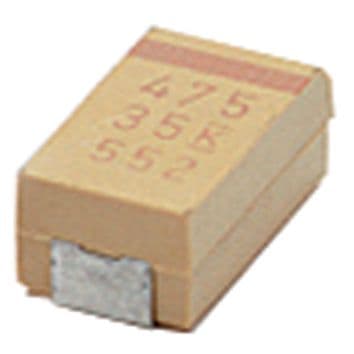

Product Images
