Surface mount tantalum capacitor, polarized, 47µF capacitance, 20V DC rated voltage, with ±10% tolerance. Features 100mΩ ESR and 6% dissipation factor, operating across a -55°C to 125°C temperature range. Housed in a 2917 (7343 metric) case code with a flat construction. Lead-free and RoHS compliant, supplied on tape and reel.
Package2917
Capacitance47uF
Voltage Rating20V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet T495D476K020ATE100 technical specifications.
General
Capacitance
47uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
100mR
Features
General Purpose
Height
4.3mm
Lead Free
Lead Free
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
T495
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
20V
DC Rated Voltage
20V
Weight
0.023634oz
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kemet T495D476K020ATE100 Datasheet
Download the complete datasheet for Kemet T495D476K020ATE100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

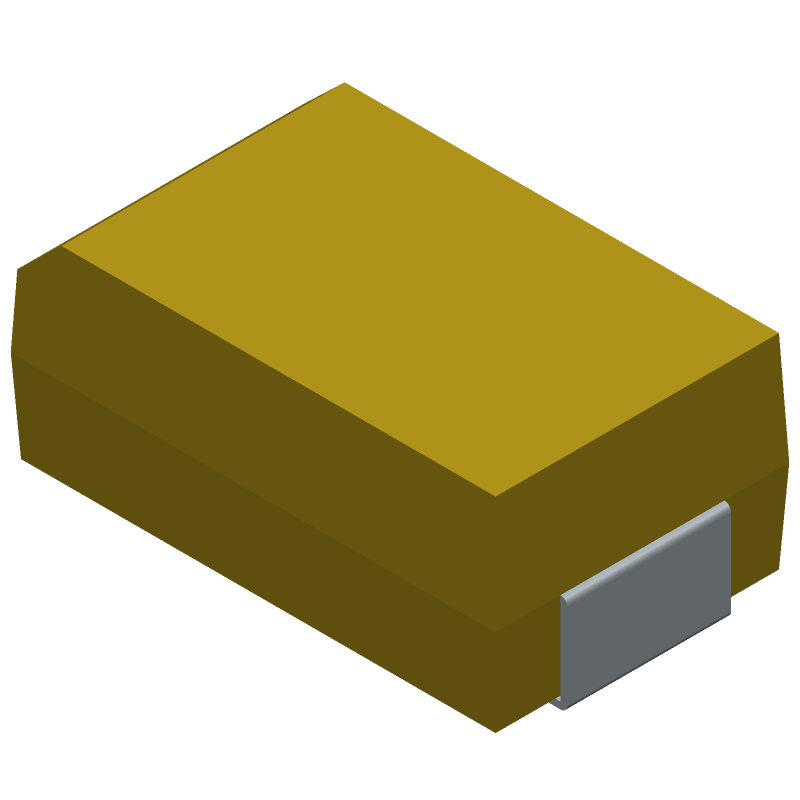

Product Images
