Polarized tantalum capacitor, 330µF capacitance, 6.3V DC rated voltage, with 10% tolerance. Features a 2917 (7343 metric) surface mount case code, 100mΩ ESR, and 19.8µA leakage current. Operating temperature range from -55°C to 125°C, with 514mA ripple current capability. RoHS compliant and lead-free.
Package2917
Voltage6.3V
Capacitance330uF
Resistance0.1R
Quick Jump:
Technical Specifications
Kemet T495X337K006ATE100 technical specifications.
General
Capacitance
330uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
100mR
Features
General Purpose
Height
4mm
Lead Free
Lead Free
Leakage Current
19.8uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
0.1R
Ripple Current
514mA
RoHS Compliant
Yes
Series
T495
Termination
SMD/SMT
Tolerance
10%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kemet T495X337K006ATE100 Datasheet
Download the complete datasheet for Kemet T495X337K006ATE100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

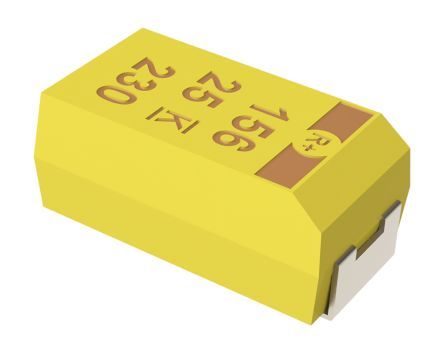

Product Images
