Polarized tantalum capacitor, 330µF capacitance, 10V DC rated voltage, with 10% tolerance. Features a 2917 (7343 metric) surface mount case code, 60mΩ ESR, and a maximum operating temperature of 125°C. This general-purpose component offers lead-free and RoHS compliance.
Package2917
Capacitance330uF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet T495X337K010ATE060 technical specifications.
General
| Capacitance | 330uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 60mR |
| Features | General Purpose |
| Height | 4.3mm |
| Lead Free | Lead Free |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | T495 |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Weight | 0.023634oz |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T495X337K010ATE060 Datasheet
Download the complete datasheet for Kemet T495X337K010ATE060 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

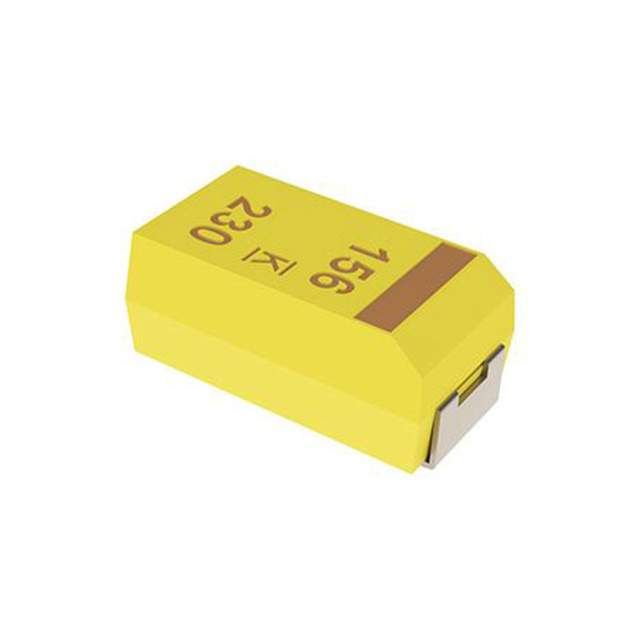

Product Images
