Solid Tantalum Capacitor, 47µF capacitance, 35V DC rated voltage, 10% tolerance. Features 300mΩ ESR, 8% dissipation factor, and 16.5µA leakage current. Operating temperature range from -55°C to 125°C. Surface mountable in a 7343-43 metric case (7.3mm L x 4.3mm D x 4mm H). Delivered on tape and reel, this general-purpose component is RoHS compliant.
Package7343-43
Voltage35V
Capacitance47uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Kemet T495X476K035ATE300 technical specifications.
General
| Capacitance | 47uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 7343-43 |
| Construction | Flat |
| Depth | 4.3mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 300mR |
| Features | General Purpose |
| Height | 4mm |
| Height - Seated (Max) | 0.169inch |
| Lead Free | Lead Free |
| Lead Pitch | 3.8mm |
| Leakage Current | 16.5uA |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 297mA |
| RoHS Compliant | Yes |
| Series | T495 |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
| Width | 0.169inch |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T495X476K035ATE300 Datasheet
Download the complete datasheet for Kemet T495X476K035ATE300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

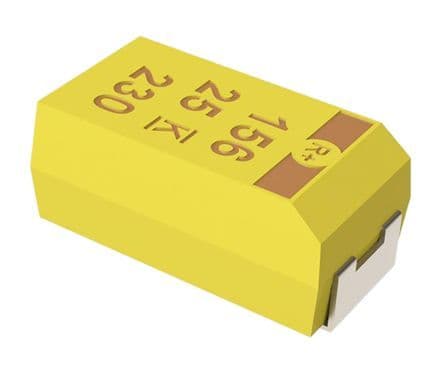

Product Images
