Polarized tantalum capacitor, 470µF capacitance, 6.3V DC rated voltage, and 10% tolerance. Features a 2917 (7343 metric) surface mount case code with a maximum operating temperature of 125°C. Equivalent Series Resistance (ESR) is 65mΩ, with a leakage current of 28.2µA. General purpose, dry/solid tantalum construction, RoHS compliant.
Package2917
Voltage6.3V
Capacitance470uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kemet T495X477K006ATE065 technical specifications.
General
Capacitance
470uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
10%
ESR (Equivalent Series Resistance)
65mR
Failure Rate
0.001%
Features
General Purpose
Height
4mm
Height - Seated (Max)
0.169inch
Leakage Current
28.2A
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
T495
Termination
SMD/SMT
Tolerance
10%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Weight
0.023634oz
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Kemet T495X477K006ATE065 Datasheet
Download the complete datasheet for Kemet T495X477K006ATE065 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

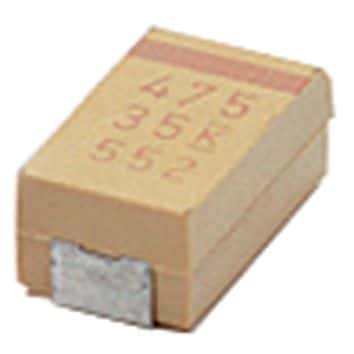

Product Images
