Polymer tantalum capacitor with 100µF capacitance and 6.3VDC voltage rating. Features 0.04 Ohm ESR, 3A ripple current, and a 105°C maximum operating temperature. SMD/SMT termination in a 3528 metric case code (3.5 x 2.8 x 1.9mm) for surface mounting. RoHS compliant with 20% tolerance and 63µA leakage current.
Package1411
Voltage6.3V
Capacitance100uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kemet T520B107M006ATE040 technical specifications.
General
| Capacitance | 100uF |
| Case Code (Imperial) | 1411 |
| Case Code (Metric) | 3528 |
| Package/Case | 1411 |
| Construction | Flat |
| Depth | 2.8mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 40mR |
| Features | General Purpose |
| Height | 1.9mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.9mm |
| Leakage Current | 63uA |
| Length | 3.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 3A |
| RoHS Compliant | Yes |
| Series | KO-CAP® T520 |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6V |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T520B107M006ATE040 Datasheet
Download the complete datasheet for Kemet T520B107M006ATE040 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

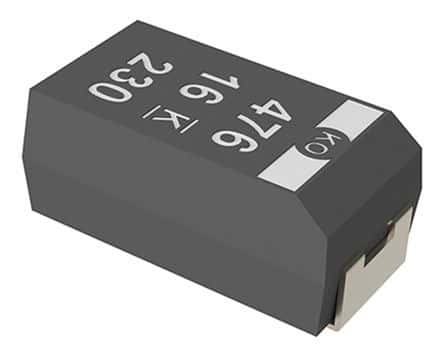

Product Images
