Polarized tantalum capacitor, 150µF capacitance, 6.3V DC rated voltage, 20% tolerance. Features 25mΩ ESR, 8% dissipation factor, and a -55°C to 105°C operating temperature range. Surface mountable in a 1411 (3528 metric) case code, with dimensions of 3.5mm length, 2.8mm width, and 2.1mm height. Packaged on tape and reel, this RoHS compliant component is suitable for general-purpose applications.
Package1411
Capacitance150uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet T520B157M006ATE025 technical specifications.
General
| Capacitance | 150uF |
| Case Code (Imperial) | 1411 |
| Case Code (Metric) | 3528 |
| Package/Case | 1411 |
| Construction | Flat |
| Depth | 2.8mm |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 25mR |
| Features | General Purpose |
| Height | 2.1mm |
| Length | 3.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | KO-CAP® T520 |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T520B157M006ATE025 Datasheet
Download the complete datasheet for Kemet T520B157M006ATE025 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

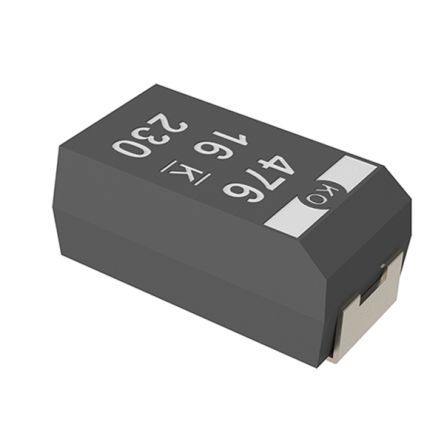

Product Images
