Surface mount tantalum capacitor featuring 150µF capacitance and 6.3V DC rated voltage. This polarized, solid polymer capacitor offers 20% tolerance and a low ESR of 70mΩ. Operating across a wide temperature range from -55°C to 105°C, it is housed in a 1411 (3528 metric) case with dimensions of 3.5mm length, 2.8mm width, and 2.1mm height. The component is RoHS compliant and supplied on tape and reel.
Package1411
Capacitance150uF
Resistance0.07R
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kemet T520B157M006ATE070 technical specifications.
General
| Capacitance | 150uF |
| Case Code (Imperial) | 1411 |
| Case Code (Metric) | 3528 |
| Package/Case | 1411 |
| Construction | Flat |
| Depth | 2.8mm |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 70mR |
| Features | General Purpose |
| Height | 2.1mm |
| Lead Free | Lead Free |
| Length | 3.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 0.07R |
| RoHS Compliant | Yes |
| Series | KO-CAP® T520 |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T520B157M006ATE070 Datasheet
Download the complete datasheet for Kemet T520B157M006ATE070 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

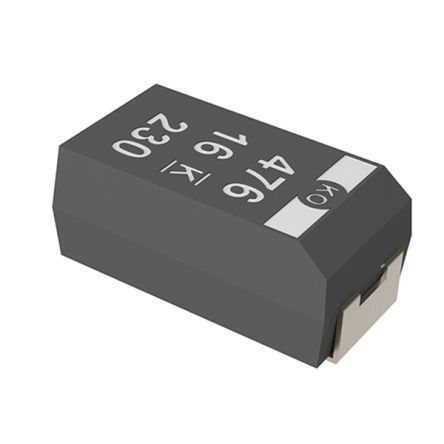

Product Images
