Polarized tantalum capacitor, 220µF capacitance, 4V DC rated voltage, and 20% tolerance. Features a low ESR of 45mΩ and a dissipation factor of 8%. Surface mountable with a 1411 (3528 metric) case code, measuring 3.5mm L x 2.8mm W x 2.1mm H. Operates from -55°C to 105°C and is RoHS compliant.
Package1411
Capacitance220uF
Voltage Rating4V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet T520B227M004ATE045 technical specifications.
General
Capacitance
220uF
Case Code (Imperial)
1411
Case Code (Metric)
3528
Package/Case
1411
Construction
Flat
Depth
2.8mm
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
45mR
Features
General Purpose
Height
2.1mm
Lead Free
Lead Free
Length
3.5mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KO-CAP® T520
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
4V
Voltage Rating (AC)
4V
DC Rated Voltage
4V
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
Kemet T520B227M004ATE045 Datasheet
Download the complete datasheet for Kemet T520B227M004ATE045 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

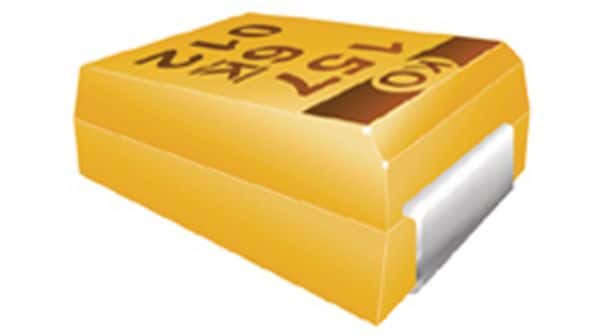

Product Images
