220µF, 6.3V polarized solid polymer tantalum capacitor for general-purpose applications. Features a 20% tolerance, 45mΩ ESR, and a 1.7A ripple current rating. Surface mountable in a 1411 (3528 metric) CHIP package with dimensions of 3.5mm length, 2.8mm width, and 2.1mm height. Operating temperature range from -55°C to 105°C. RoHS compliant and supplied on tape and reel.
Package1411
Capacitance220uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet T520B227M006ATE045 technical specifications.
General
| Capacitance | 220uF |
| Case Code (Imperial) | 1411 |
| Case Code (Metric) | 3528 |
| Package/Case | 1411 |
| Construction | Flat |
| Depth | 2.8mm |
| ESR (Equivalent Series Resistance) | 45mR |
| Features | General Purpose |
| Height | 2.1mm |
| Length | 3.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.7A |
| RoHS Compliant | Yes |
| Series | KO-CAP® T520 |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T520B227M006ATE045 Datasheet
Download the complete datasheet for Kemet T520B227M006ATE045 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

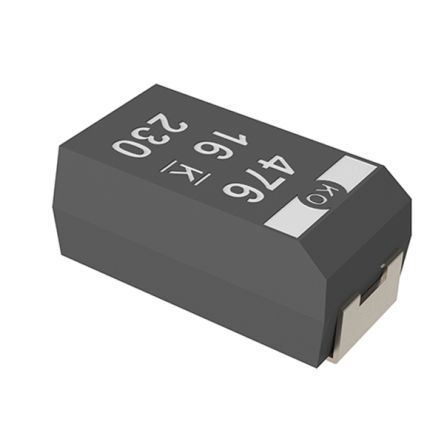

Product Images
